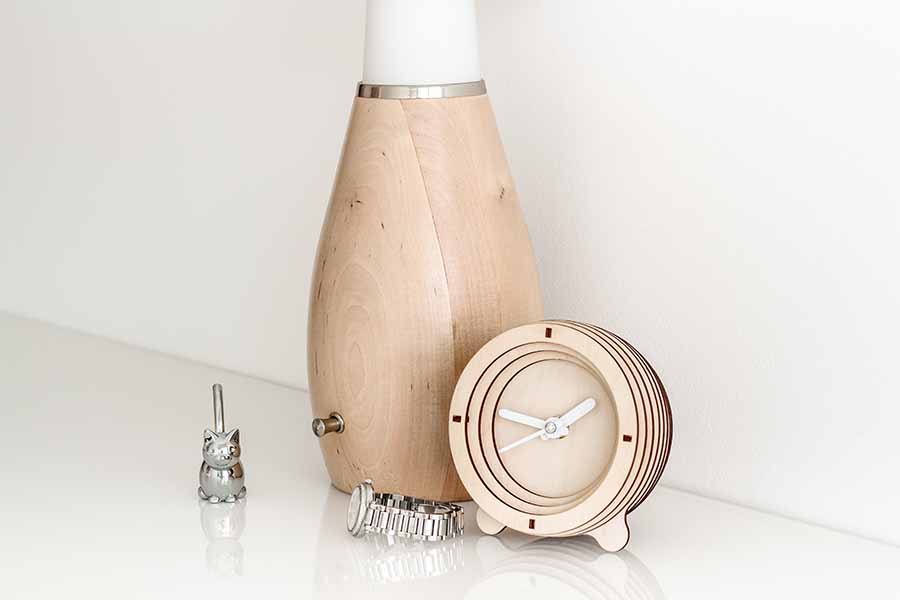

The BeeHiveClock is a new table clock prototype by GorjupDesign company.
The name comes from simple shape, that reminds of stylized shape of beehive.

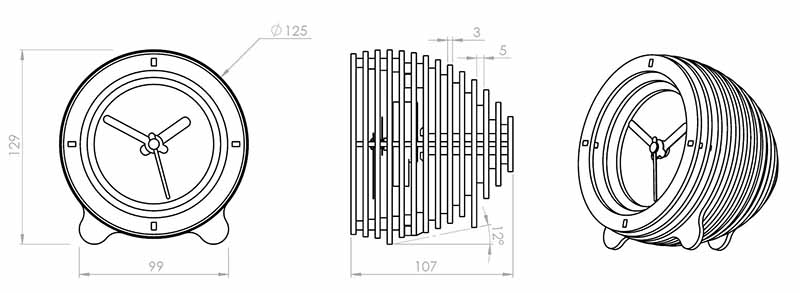

The basic dimensions of the table clock are: 129mm x 125mm x 107mm

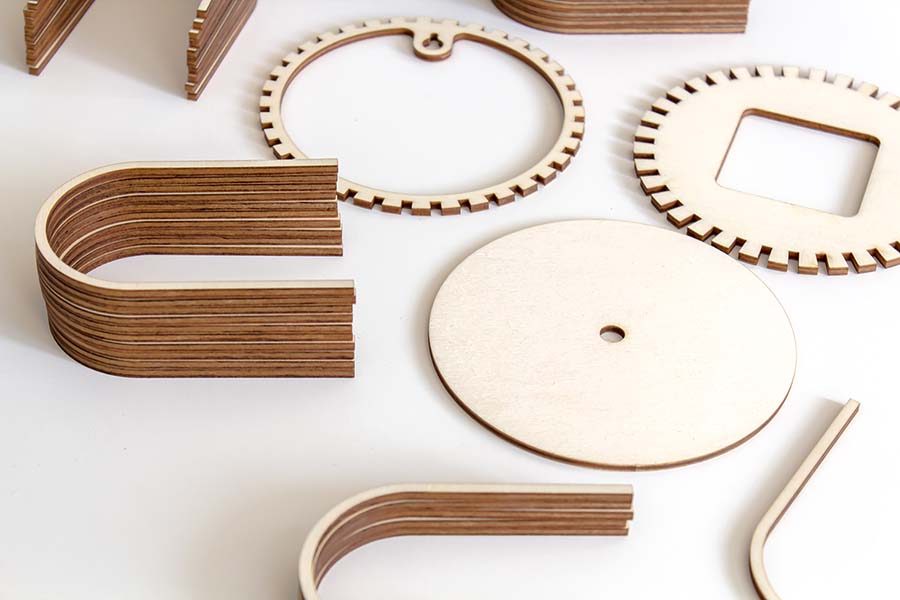

The clock housing parts are precisely laser cut of 3mm birch plywood. 22 parts are carefully hand assembled and glued.

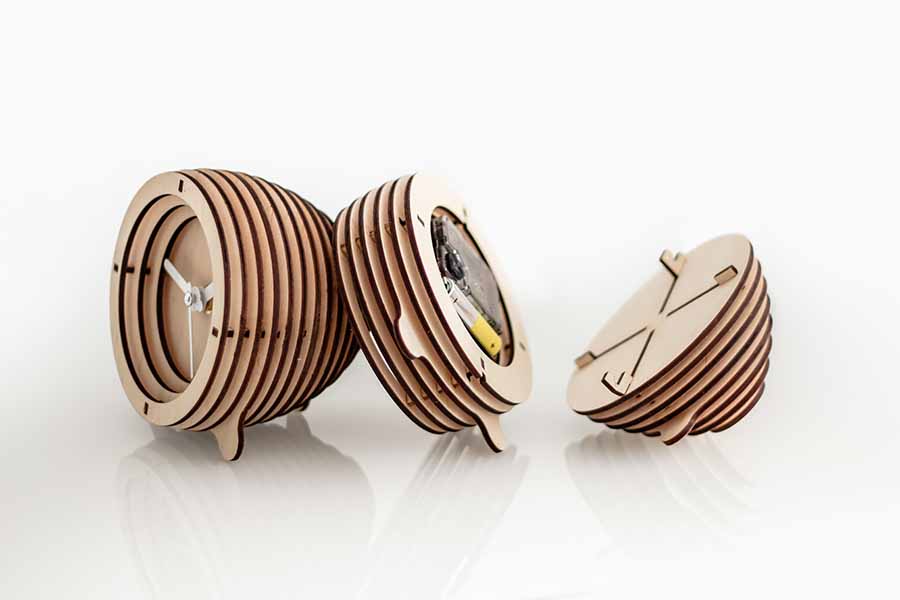

The back part of housing can be easily detached from main housing when time adjustment or battery replacement is needed.
A clever design assures bodies attachment only with hooks, so no screws are needed, which makes the 100% wooden body.
Silent/sweep mechanism is allowing that clock can be placed also in bedrooms.
Final product prototype photos -

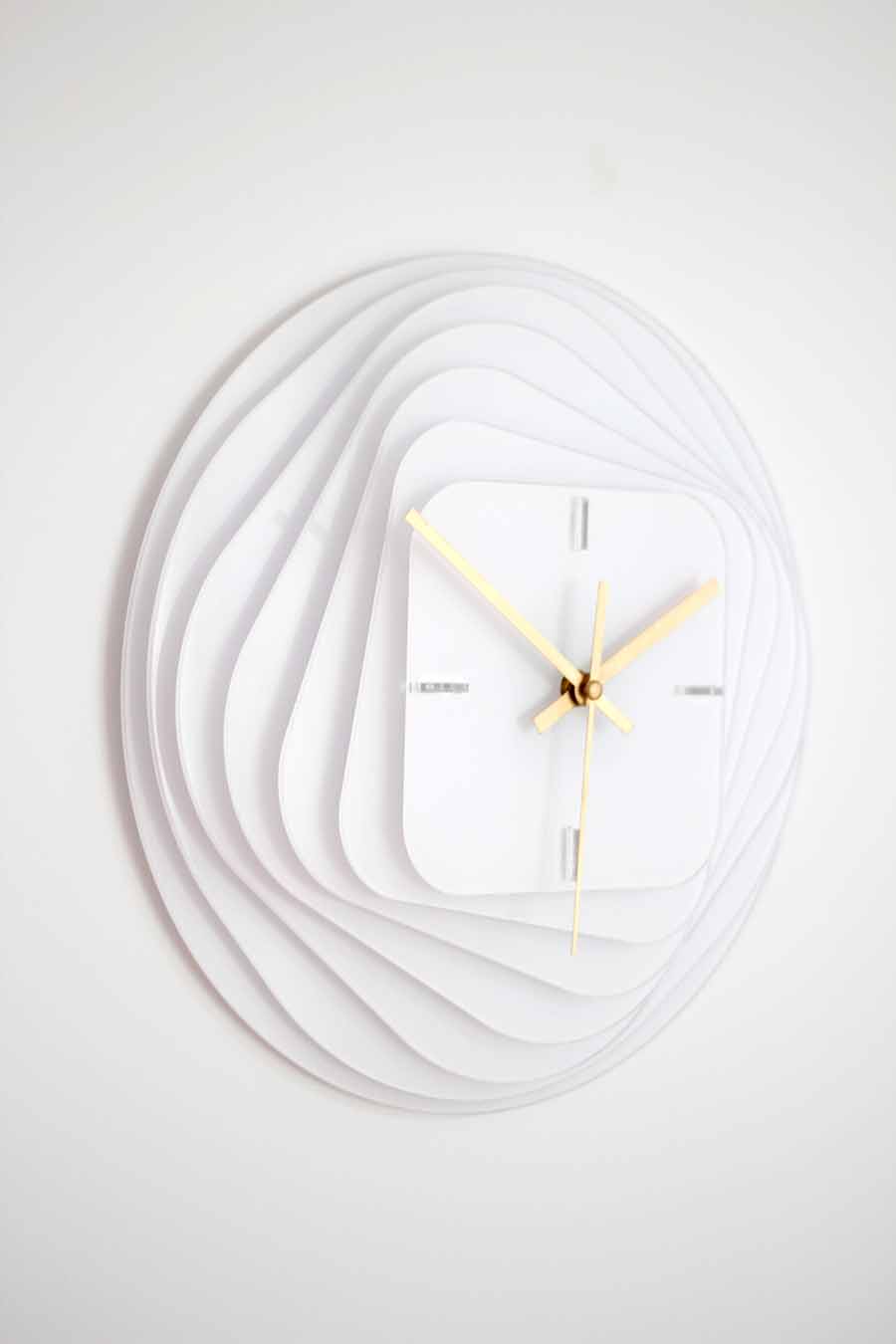

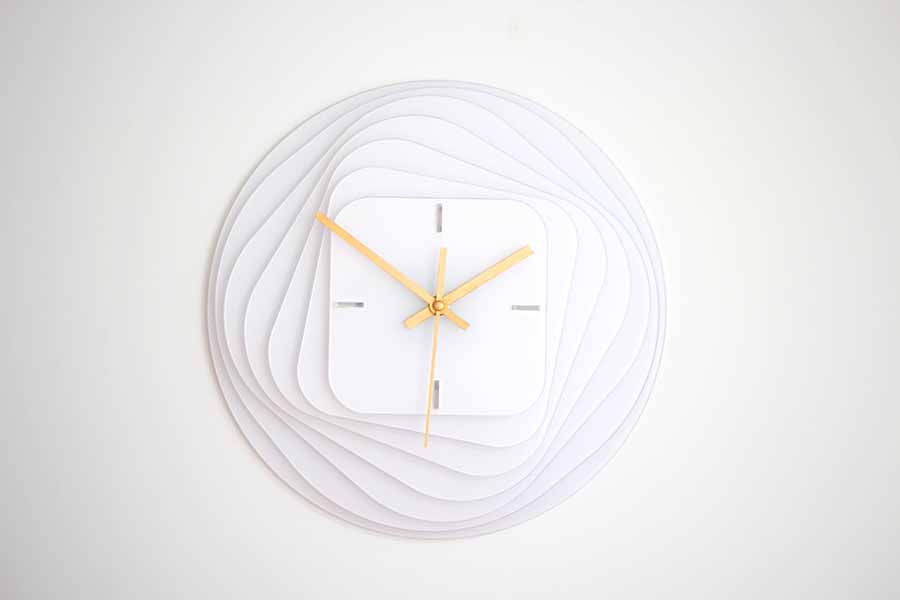

A new product concept by GorjupDesign - RoundSquare Clock.

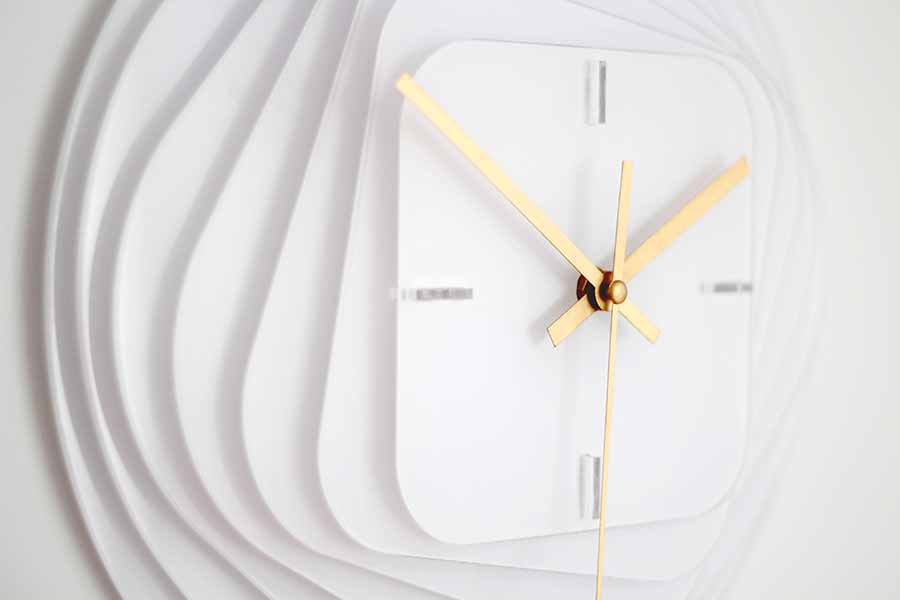

Available in wooden or acrylic glass version with a silent movement mechanism and metal hour pointers.

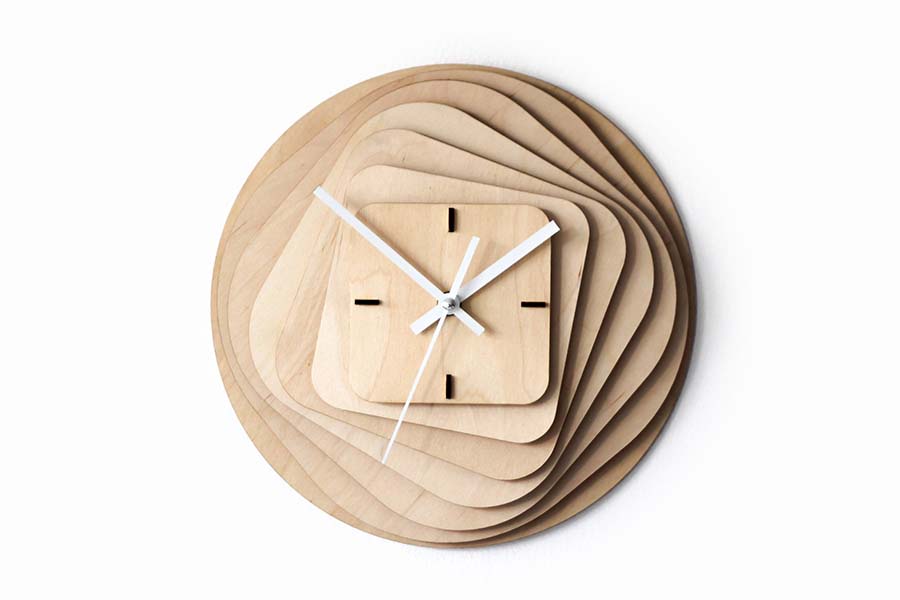

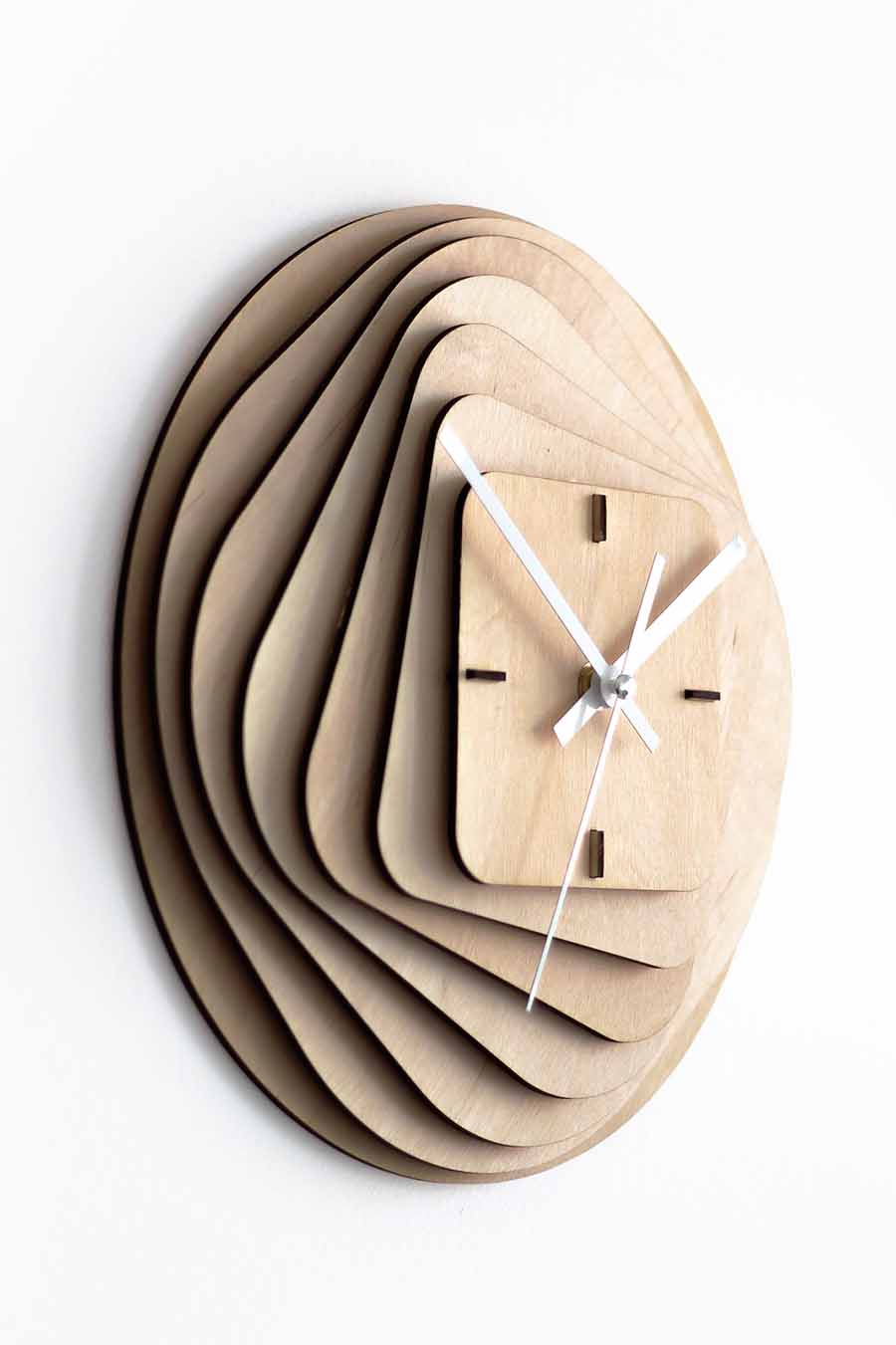

The layers are forming transformation from outer circular shape to inner square shape which gives a nice shadow effect making this clock even more unique.
The clock consists of 11 laser cut 3mm birch plywood or 3mm acrylic glass parts with 7 main layers with 3mm space between them and 4 construction parts that are also cleverly used as a main hour dial. -
Ruudukko Wall Clock

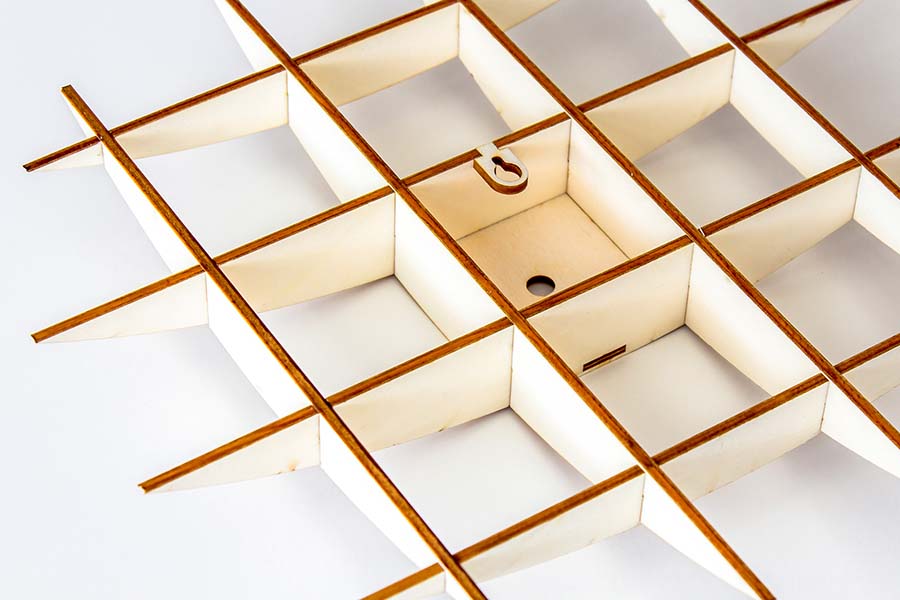

The basic design idea is a simple and minimalistic grid structure that forms a shape of a sphere partly appearing out of fresh painted wall.
With non-disturbing silent movement clock mechanism, the clock is suitable for bedrooms and also for office spaces.
Minimalistic shape for minimalistic spaces.
Different body color variations will be available.

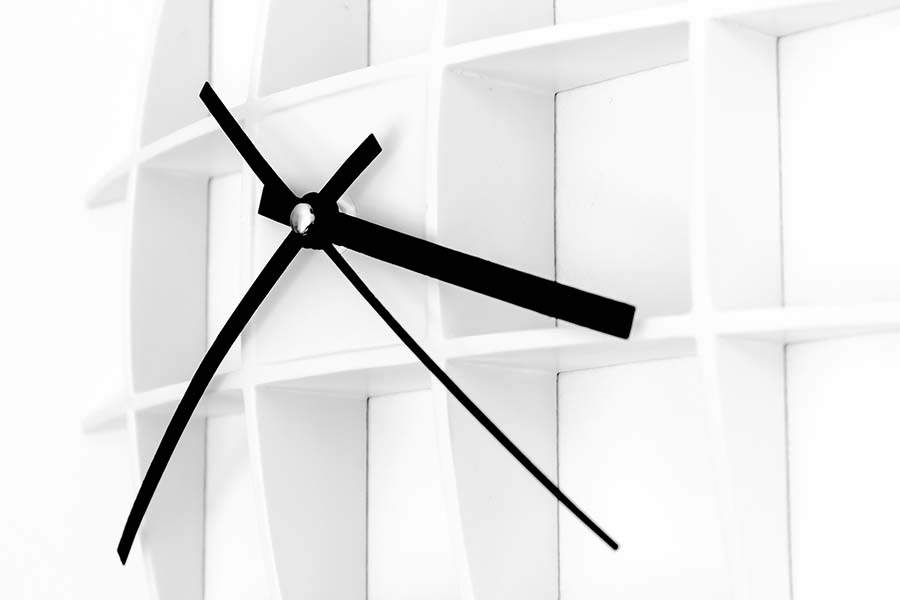

Bended metal hour pointers will also available in different color variations.

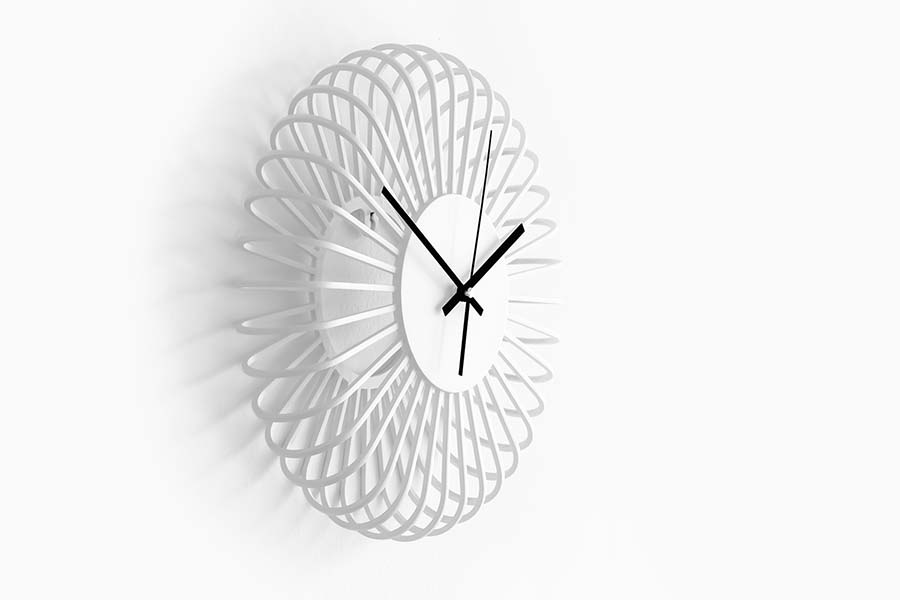

The clock body consists of 10 precisely laser cut wooden parts, which are creating self-supporting structure with simple wall hanger when assembled. -

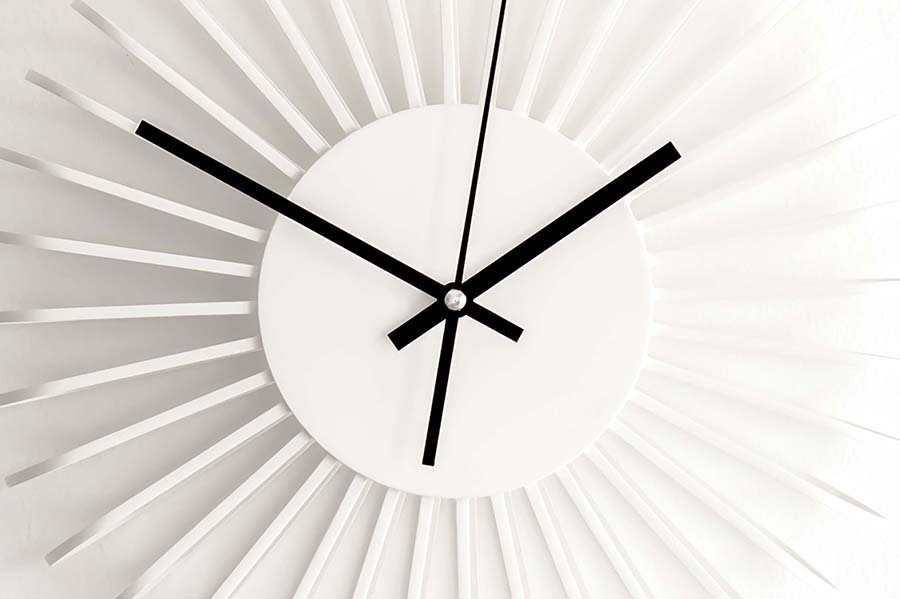

Wooden Puff Wall Clock
A new concept by GorjupDesign - Wooden Puff wall clock.
With its simple and minimalistic shape, the Puff wall clock gives a nice decoration to any home.
Available in natural wooden finish and white matte paint.
3D Viewer:Photos:
White Version

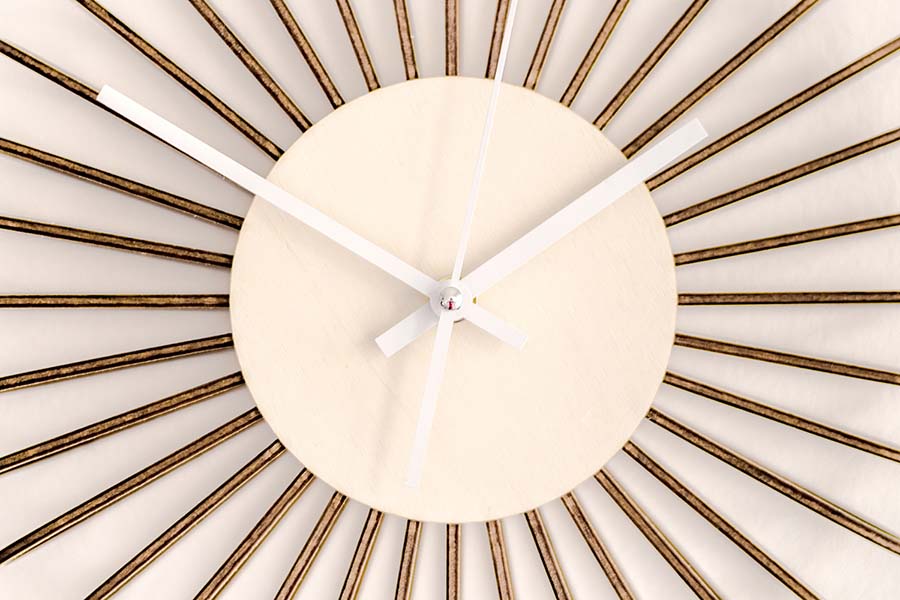

Natural wood versionThe clock consists of 39 wooden parts and silent movement clock mechanism with custom painted metal hour pointers.
Laser cut from plywood, hand assembled, glued and custom painted.
-
Yamaha MT-09 by GorjupDesign

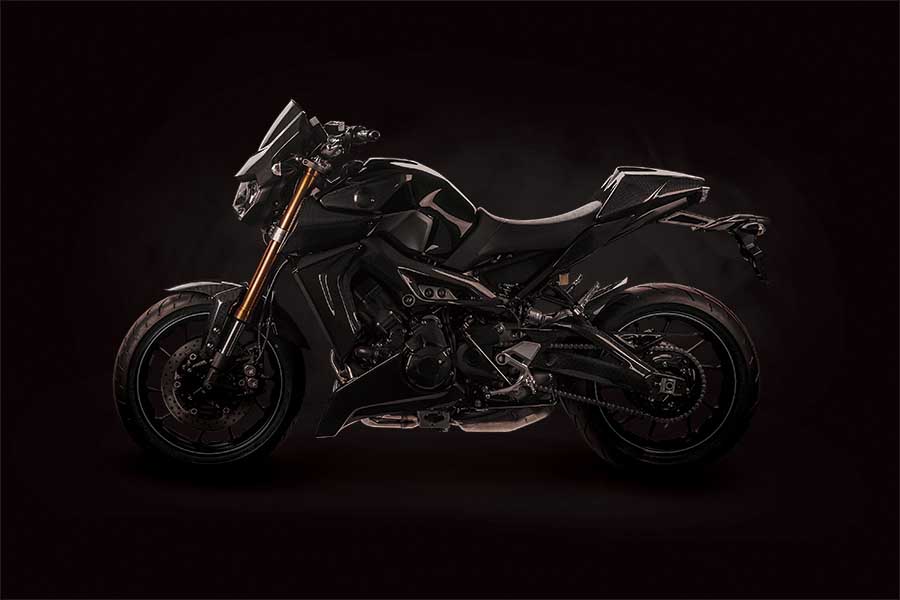

The Yamaha MT-09 by GorjupDesign in collaboration with Carbonin: a classic design approach combined with the latest 3D technologies.
Design with passion by GorjupDesign using initial sketches over flat modelling, 3D scanning and CAD modelling to 3D printing processes. All tooling, fitting designs and final carbon fibre part production by Carbonin.
The motorcycle was presented on Intermot Köln 2014 and Eicma Milan 2014.

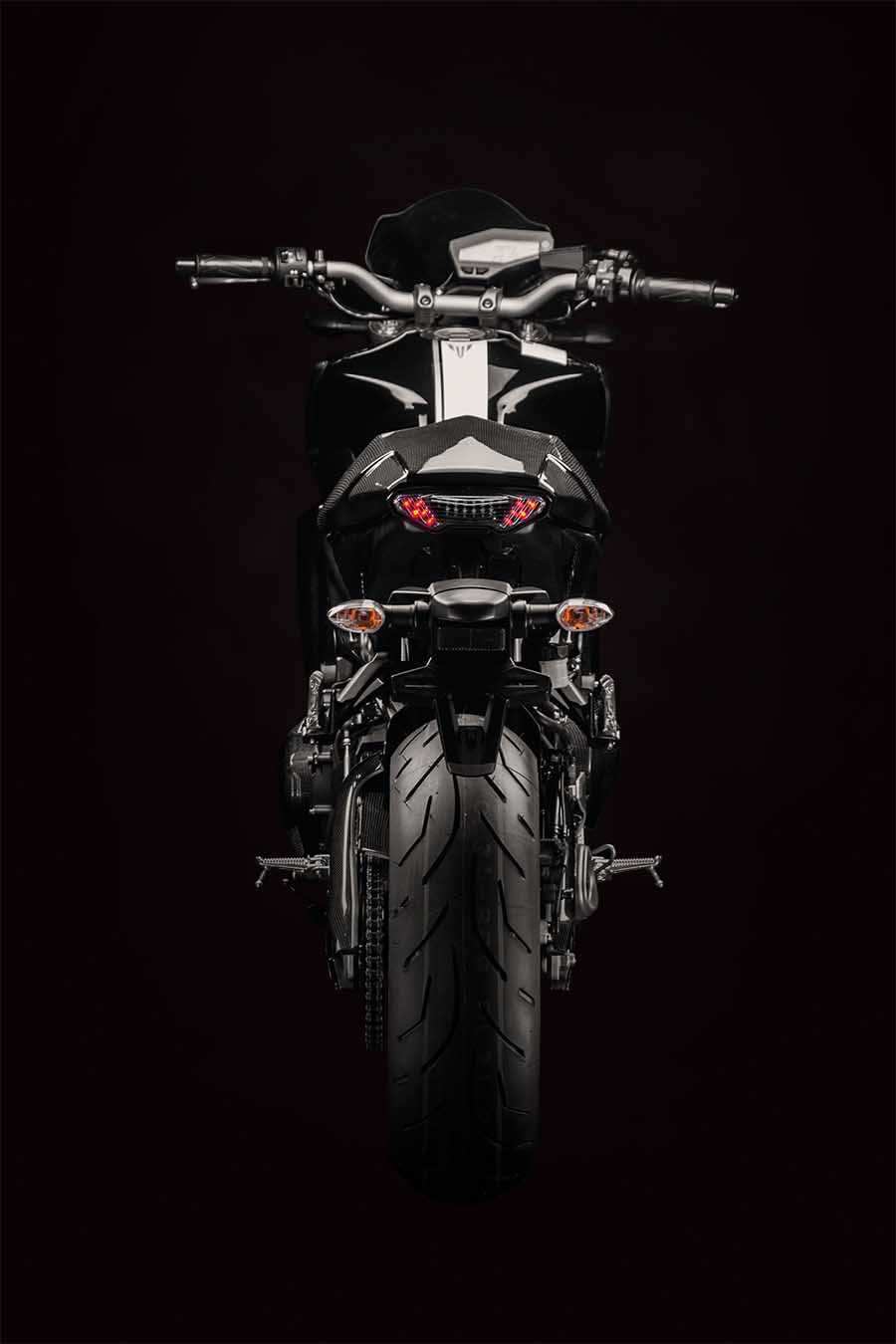

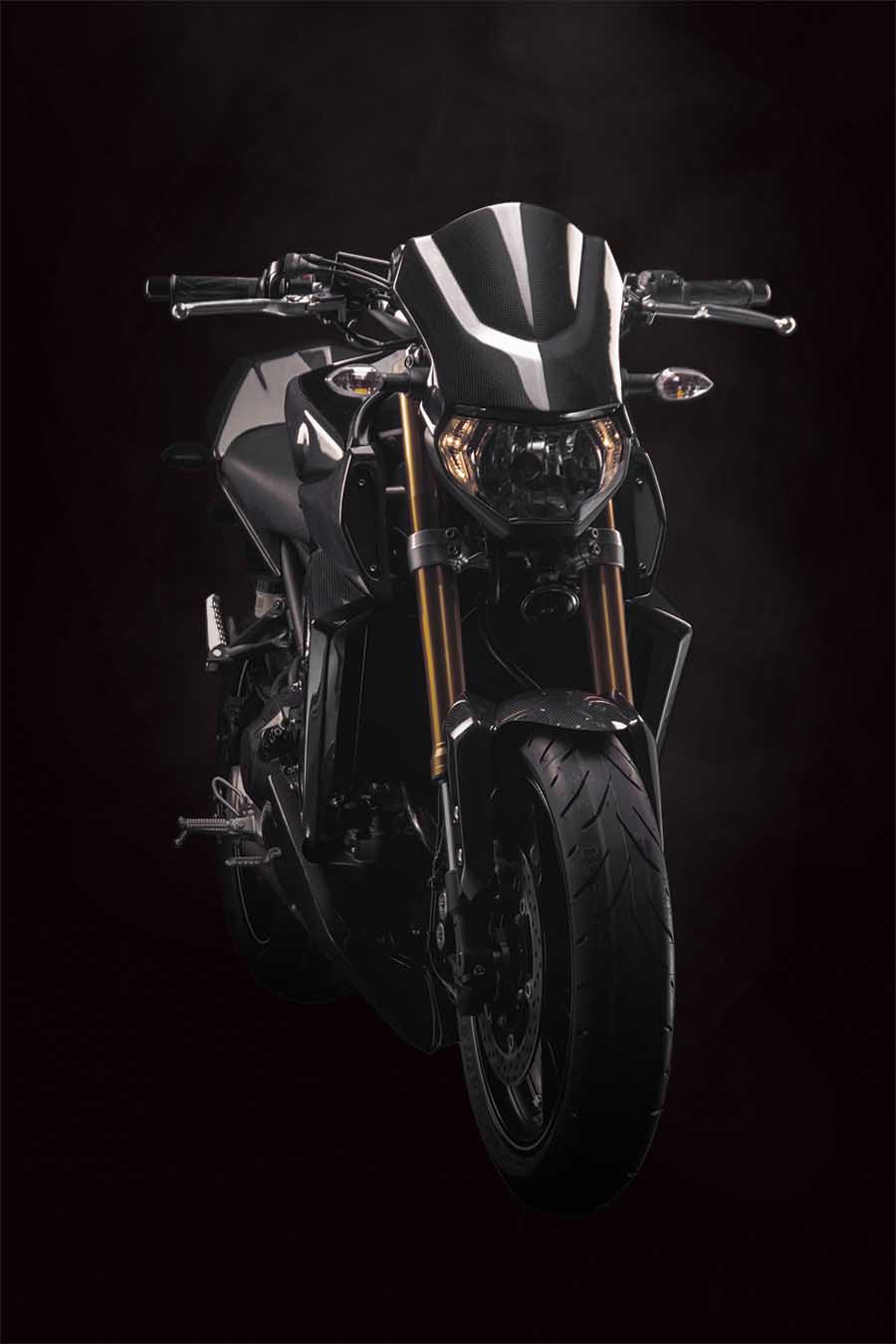

Final photos of Yamaha MT-09 by GorjupDesign motorcycle

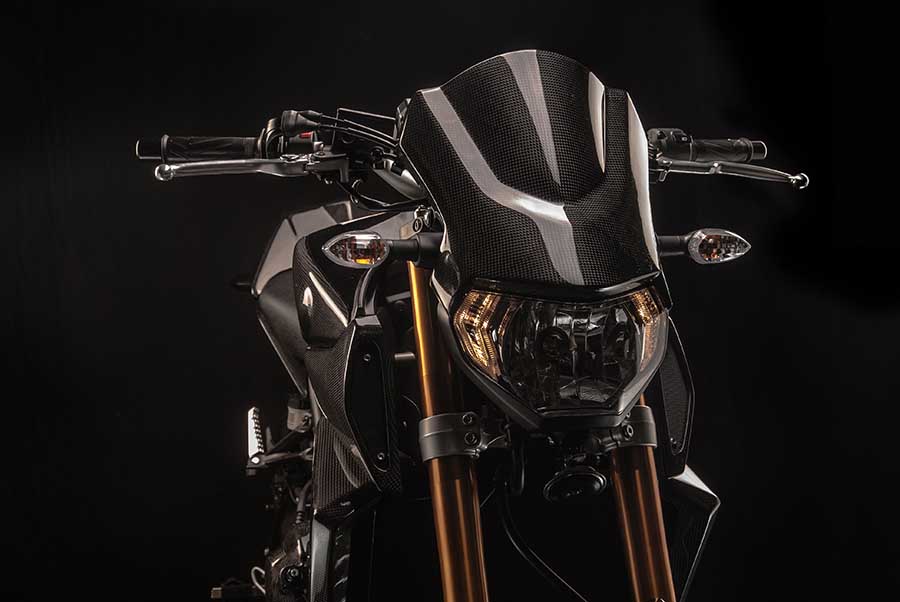

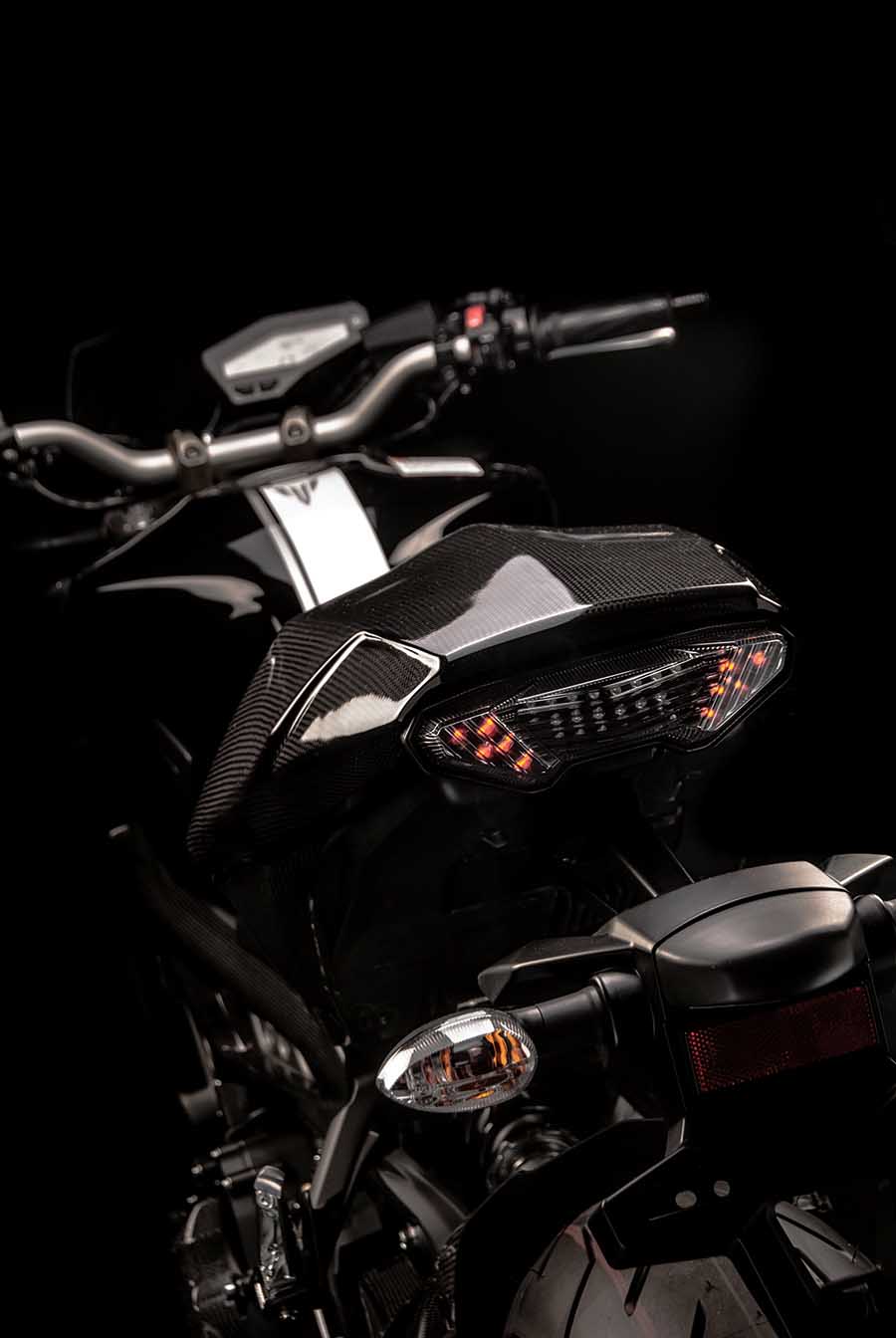

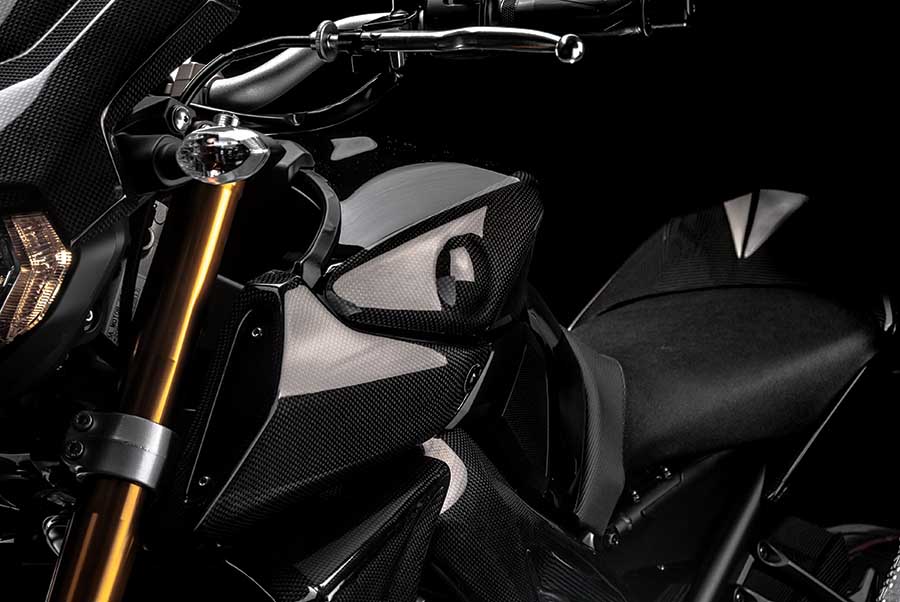

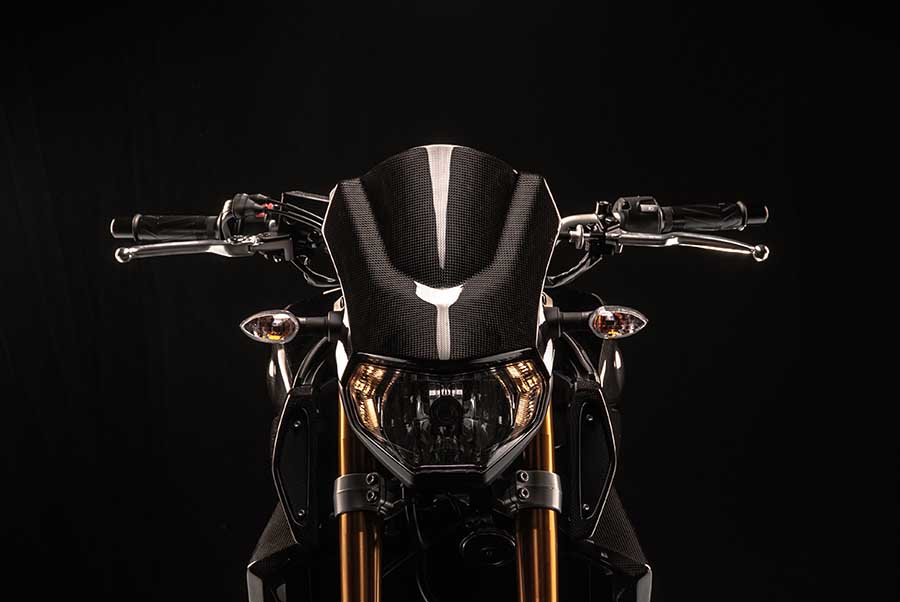

Detail photos:

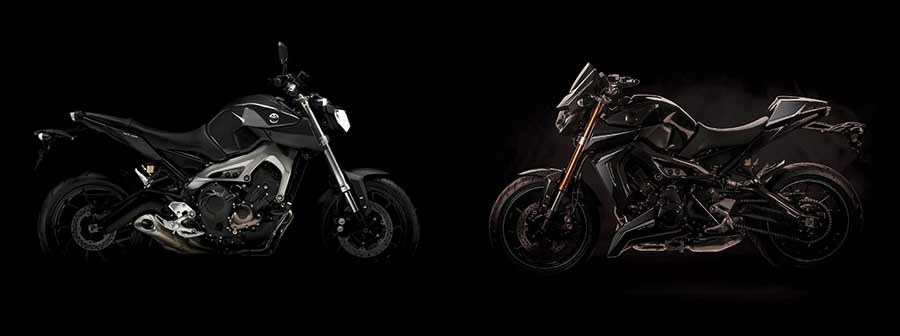

Comparison between the stock Yamaha MT-09 VS. MT-09 by Gorjupdesign
The design process:

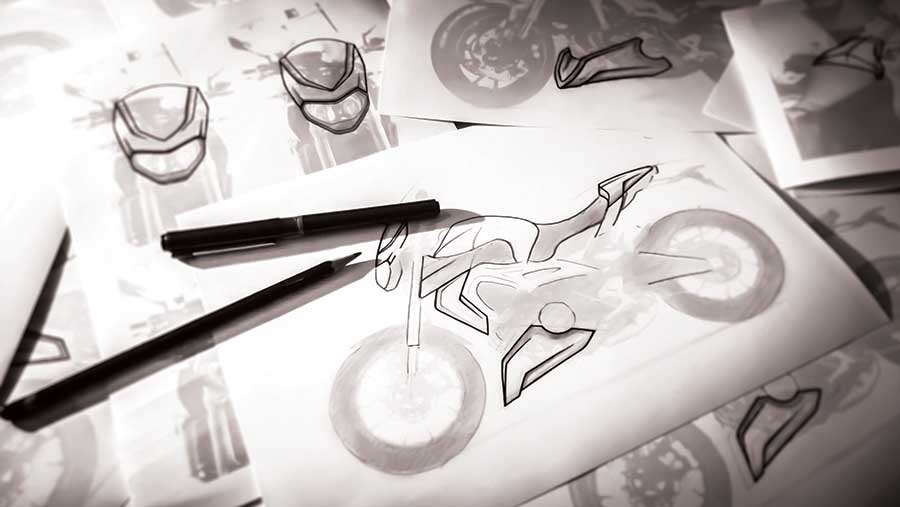

Design sketches
Clay modelling
3d scanning and CAD modelling
3d printing
Tool modelling
Defining cuts on first carbon fibre models from tool
Testing the fittings

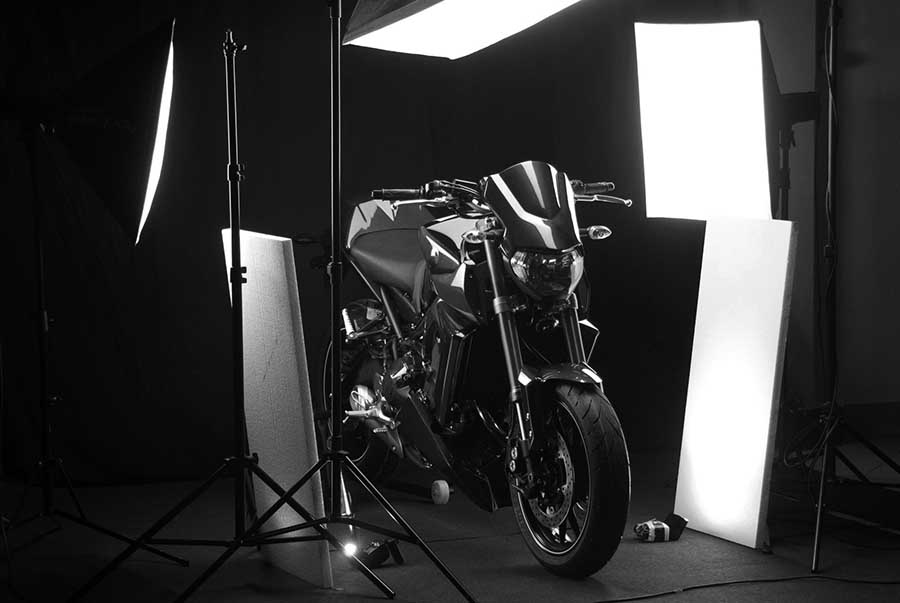

Final studio photography by Alen Bubanja
Logotype design
-

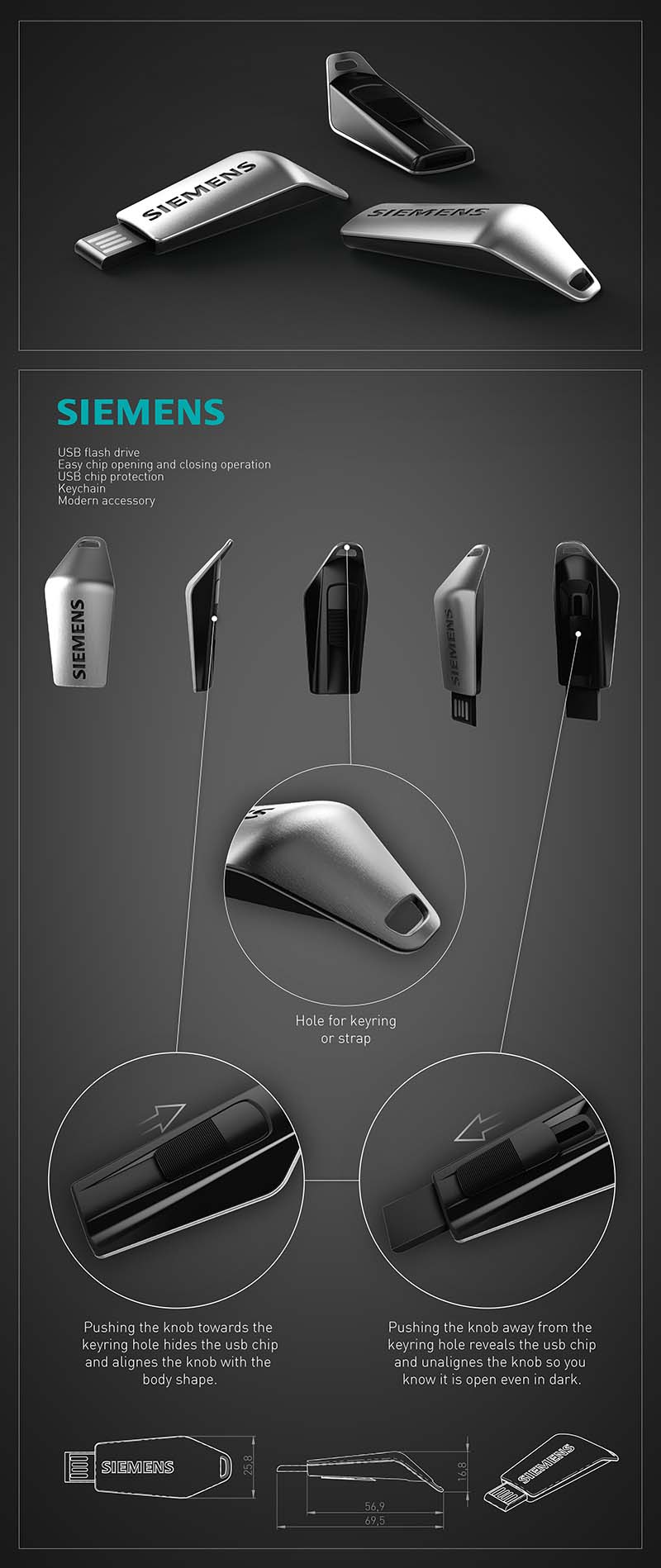

GorjupDesign's four sumbited design presentations for Siemens USB flash drive.
First design is minimalistic direct plug-in USB flash drive that can be used also as an accessory clip or keychain.
Second design is minimalistic direct plug-in USB flash drive which has an all time protected USB chip according to bellows feature which automatically opens chip when inserted into computer slot and closes when disconnecting. It can be used also as a stylish keychain.
Third design is a minimalistic USB flash drive which can be used as a ruler or angle measurer. The closed position also protects USB chip. It can be used also as a stylish keychain.
Fourth design is a minimalistic USB flash drive with simple opening and closing mechanism for USB chip protection that can be used as a stylish keychain. -
D.I.Y. visiting card holder
This year our clients received the surprise from GorjupDesign company.

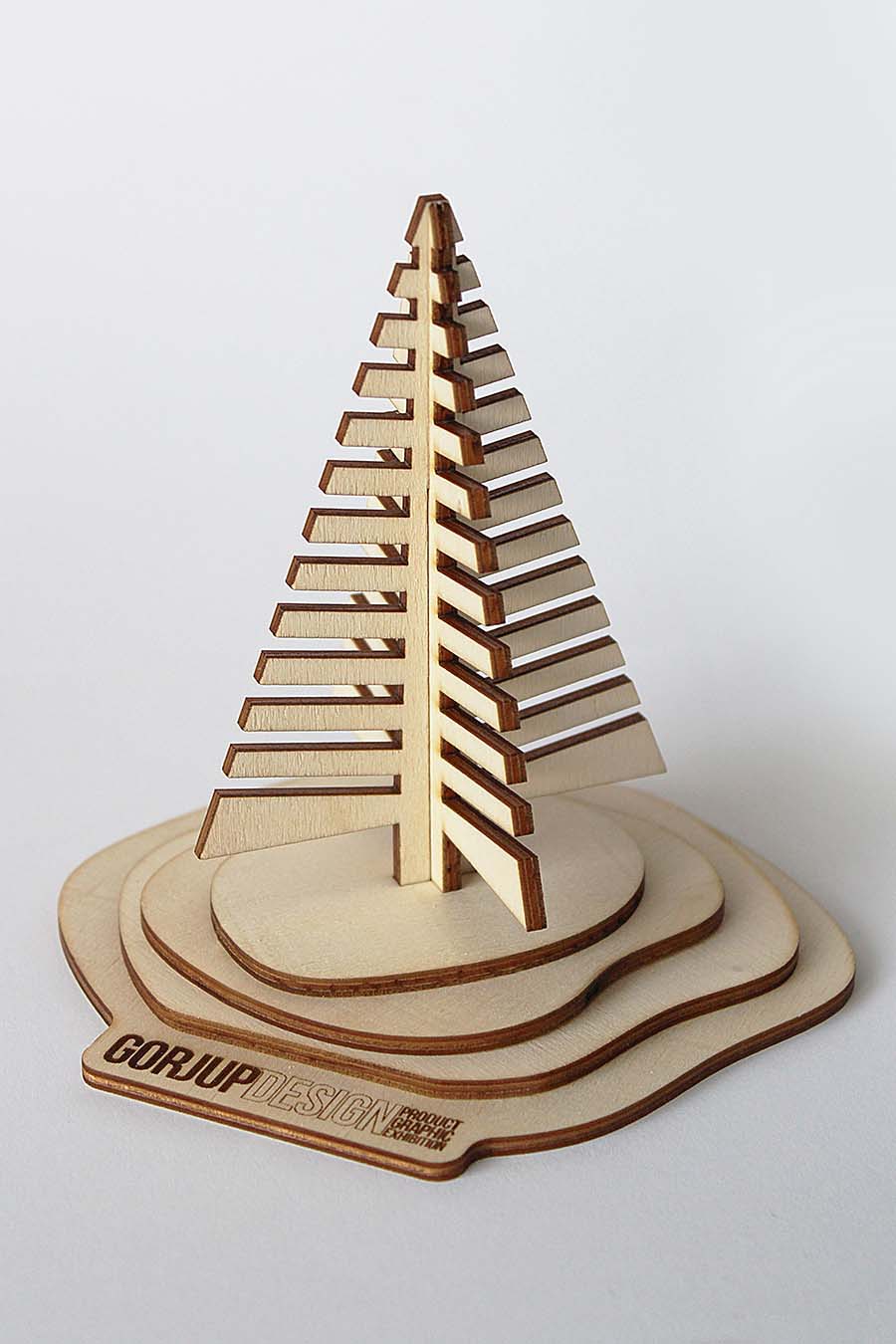

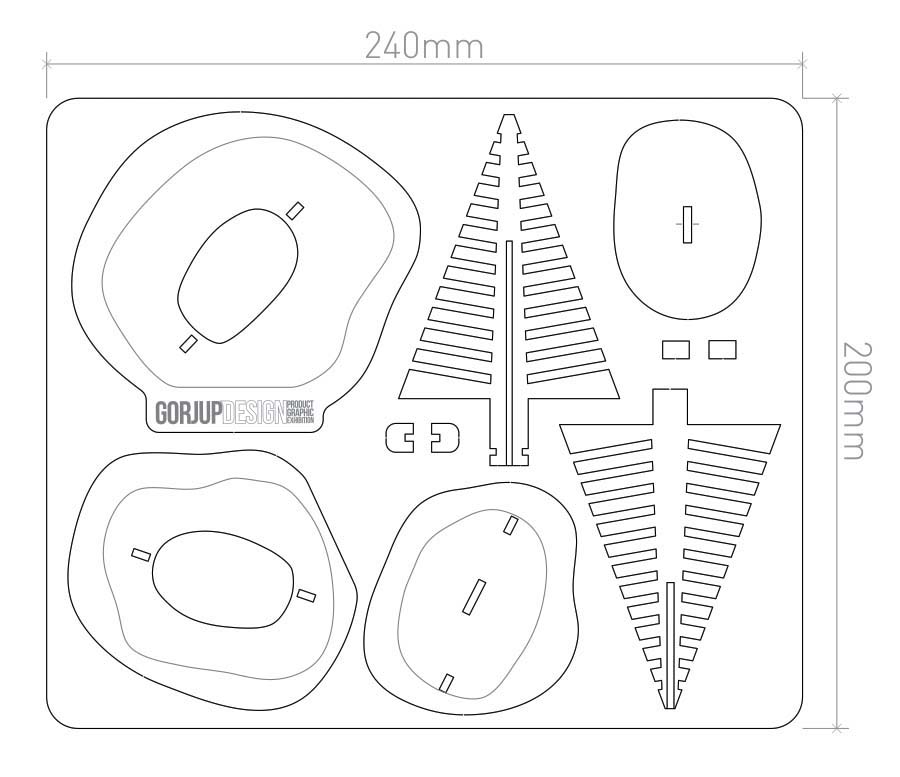

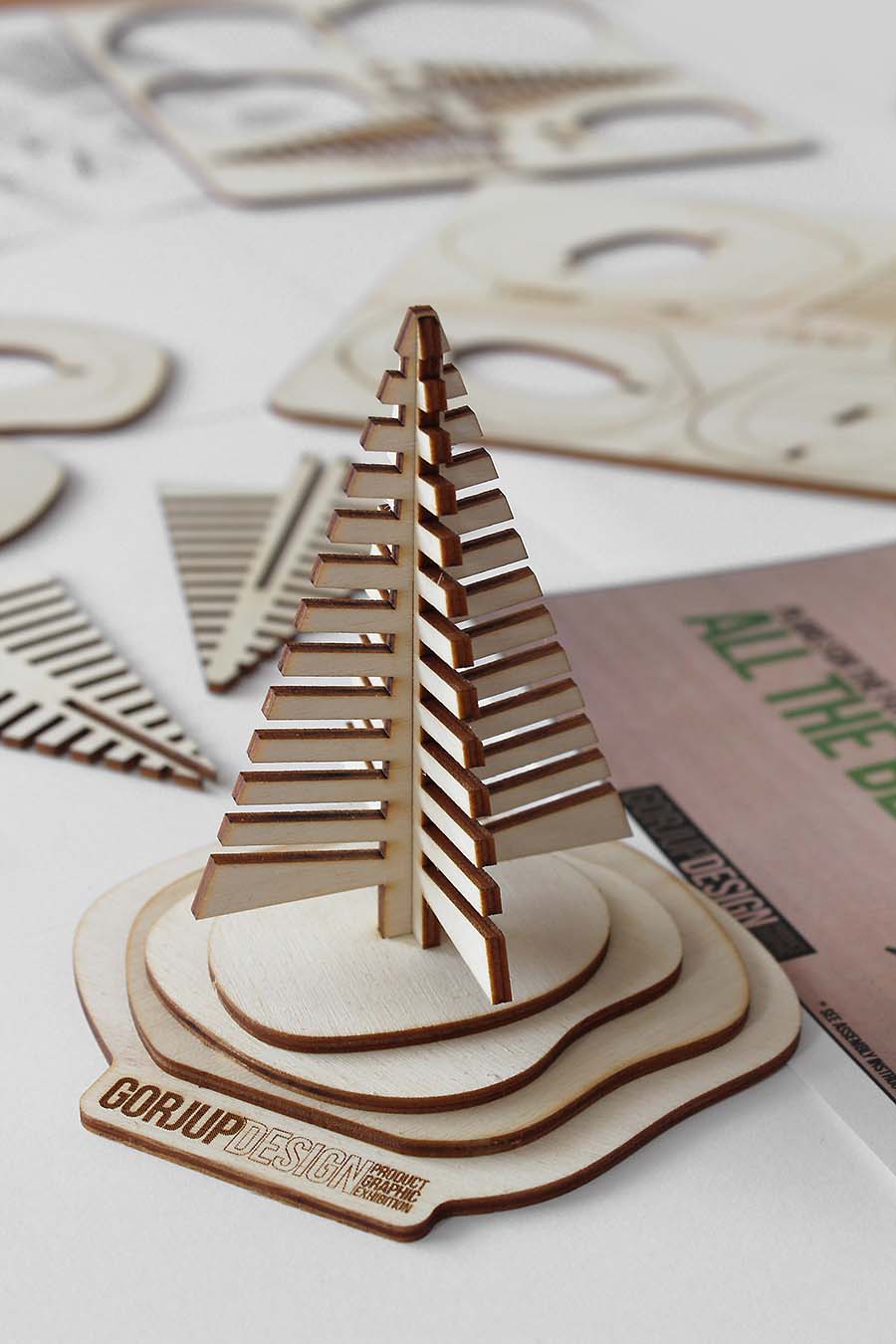

A custom designed, laser cut and engraved d.i.y. visiting card holder as a wooden 3d puzzle in a shape of christmas tree.
Some of the biggest advantages of this product is that it is self supporting, has no visible joints, can be assembled without any tool and without any glue.

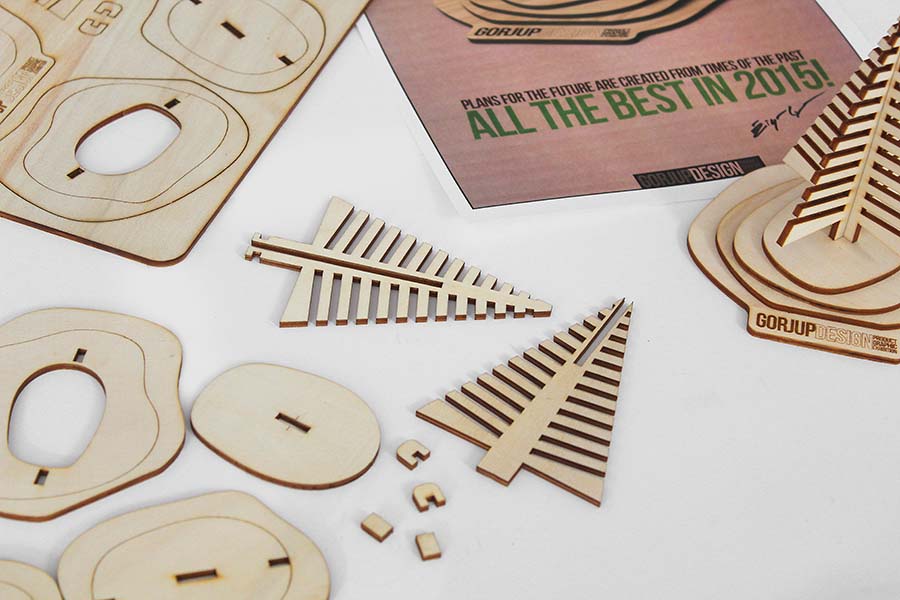

The whole package consisted of laser cut and engraved wooden plate, christmas greeting card with custom designed assembly instructions on the back side of the paper.The size of the product is developed in order to be sent as a standard mail package with complete weight of just 70g, including standard bubble padded A4 envelope and greeting card with instructions.
Photos of final product after assembling:
-
Extended Fuel Tank for Ducati 1199 Panigale
Exclusively designed by GorjupDesign for CDT Group and their Fullsix brand name!
It is the world's first and most capacious carbon monocoque fuel tank!
The carbon fuel tank has a 25 liter capacity in contrast to stock fuel tank with only 17 liters.
Designed for race tracks but still street legal, preserving the same rider comfort and excellent aerodynamics.
GorjupDesign was in charge of designing the shape, clay modelling, CAD designing and Tool design. All other credits are going to CDT group.Design process

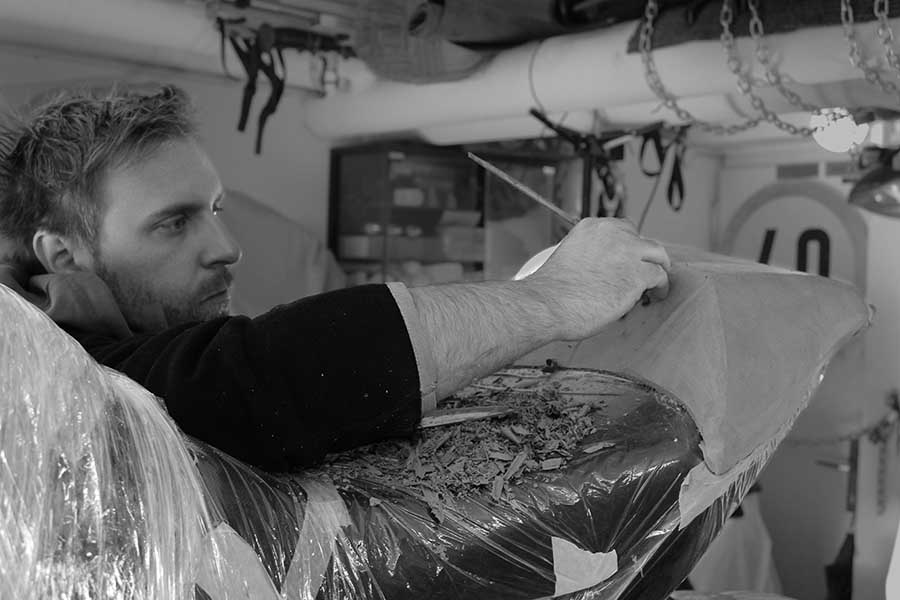

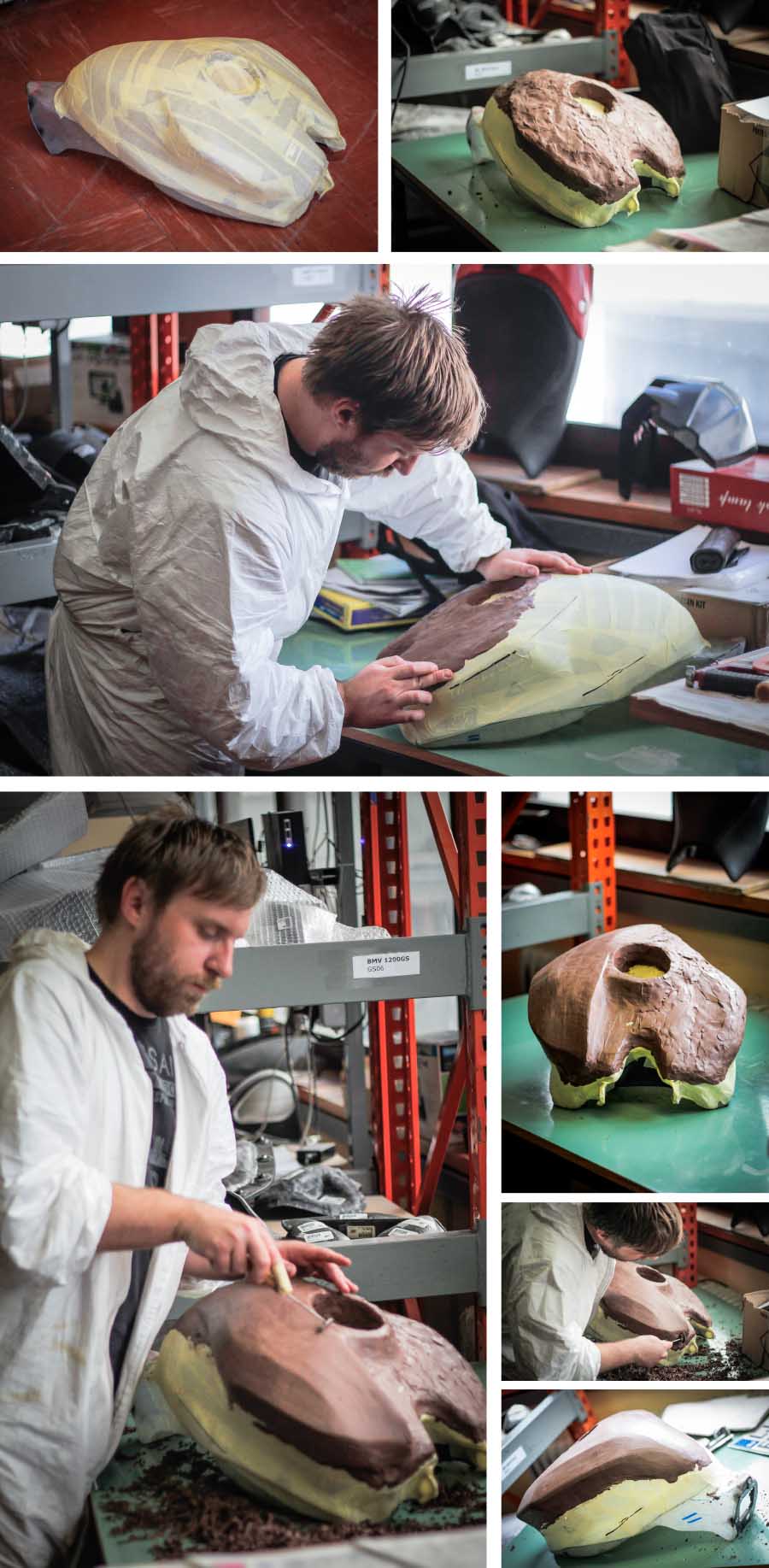

The stock fuel tank was first protected, then the layers of clay were applied and after that the clay shaping process begun. The two halfs were made one at a time.

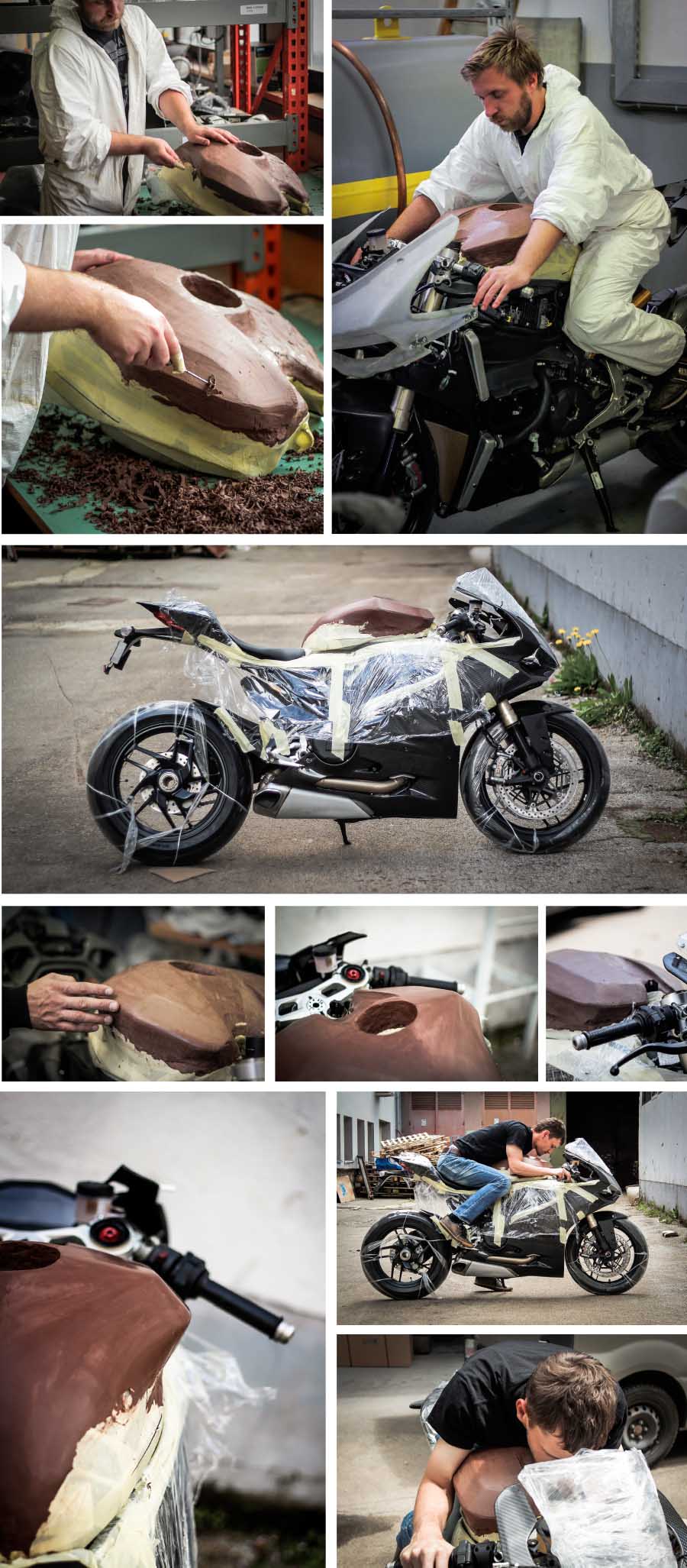

Testing the riding comfort, aerodynamics and adjusting the shape to tiniest details. After confirming the shape and riding comfort the clay model went in 3d scanning process.
After receiving the 3d scan data, the CAD model was designed, taking a huge attention of surfacing continuity. The shape was again tested on a virtual bike for following the bike lines properly. After that, the tools were designed and sent for manufacturing.
At this point you can see also the side covers/sliders. The sliders can be replaced after eventual crash and are keeping fuel tank from damaging.Final product

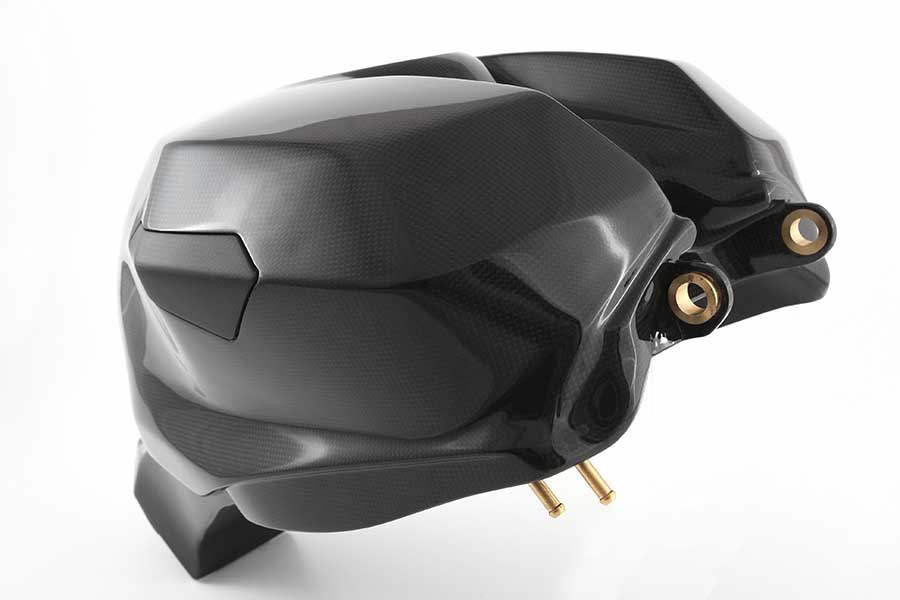

The final product photographed in studio. All the details and features are considered and designed to give best visual appearance and maximum weight saving.
The fuel tank is now available on market and already getting great feedback from first riders!Photos below are property of CDT group, all rights reserved.
Fuel tank in action!
Hessmoto Racing team Ducati Panigale build with Fullsix carbon and graphic design by Luminox.
All amazingphotos belong to Rene Unger, all rights reserved
-

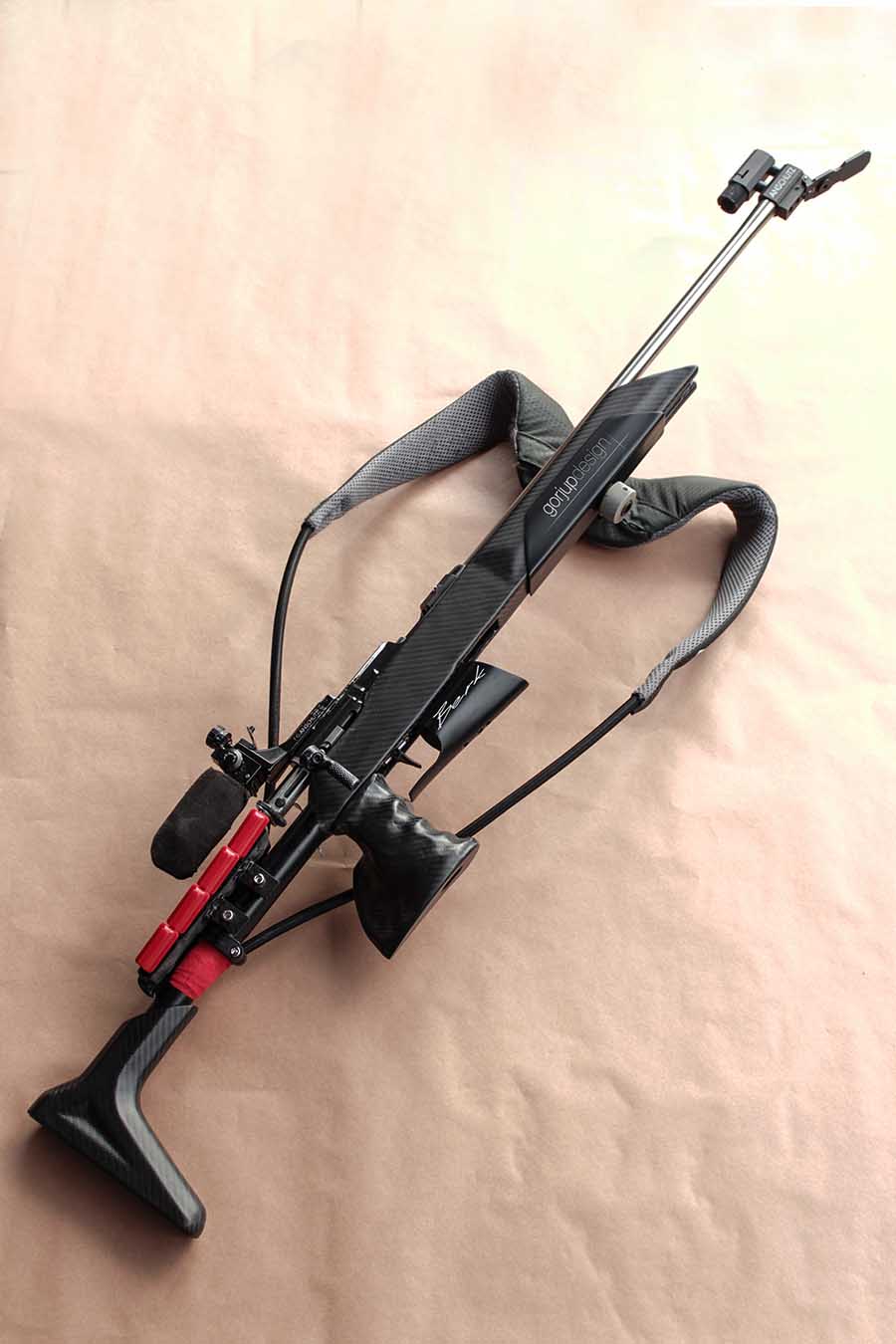

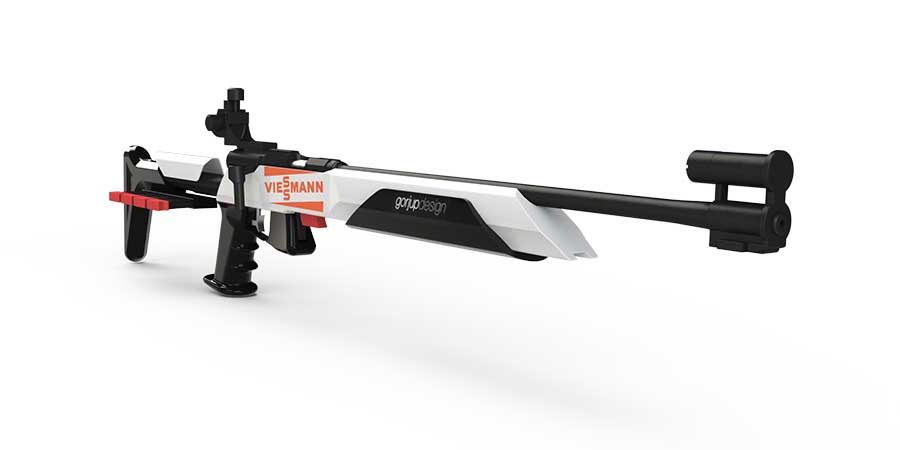

Biathlon Rifle Design
A custom project for a very special client - Peter Dokl, slovenian biathlete representing Slovenia on Sochi Winter Olympic Games 2014.
Peter wanted a custom designed stock for biathlon rifle that will suit all his needs as a professional sportsman, but still to follow all the competition standards by IBU.
The new features for this rifle were:
- pistol grip
- different cocking principle
- quick adjustable stock with two positions
- better ergonomics
- perfectly balanced with an option of custom balancing
- sharp looking
- carbon fibre made

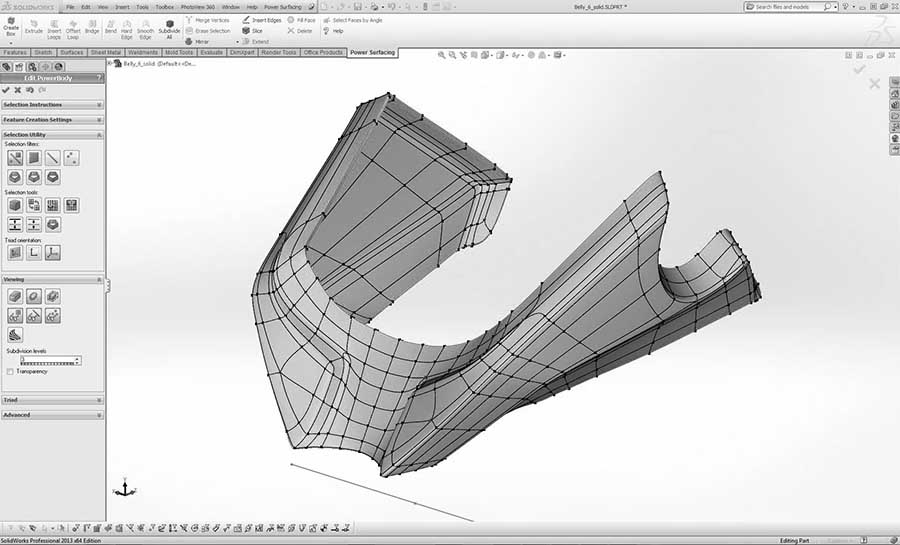

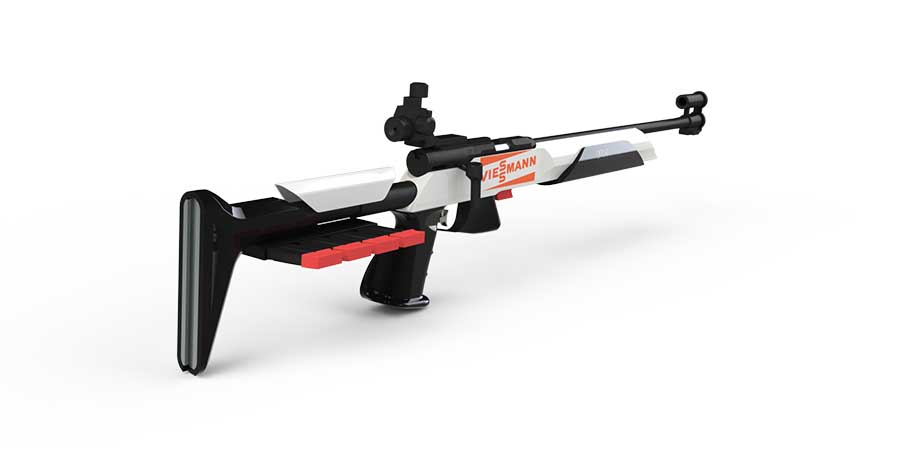

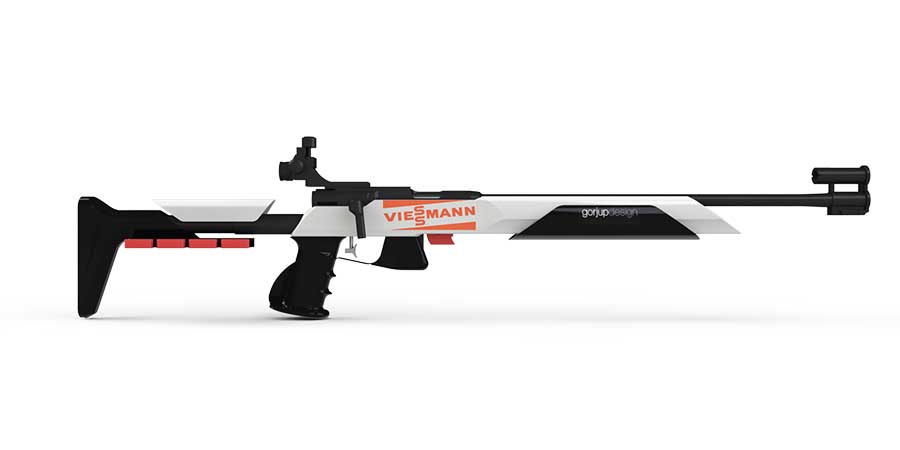

The first designs and 3d models were made
After the design was confirmed, the 3D prints were ordered. The 3D prints were then used for tool design for carbon fibre parts production. All the carbon work was done by company Berk Composites. The prototype stock then went to some field testing.

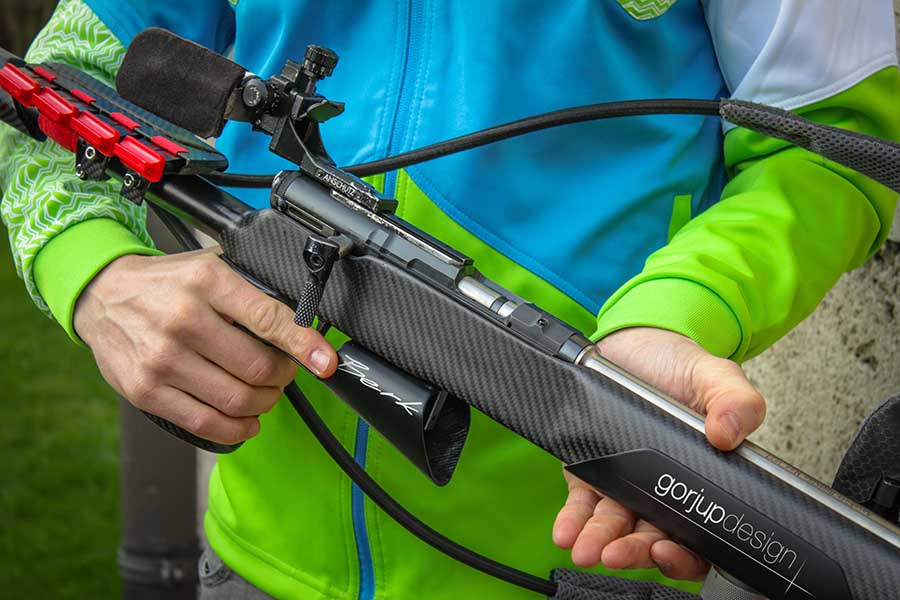

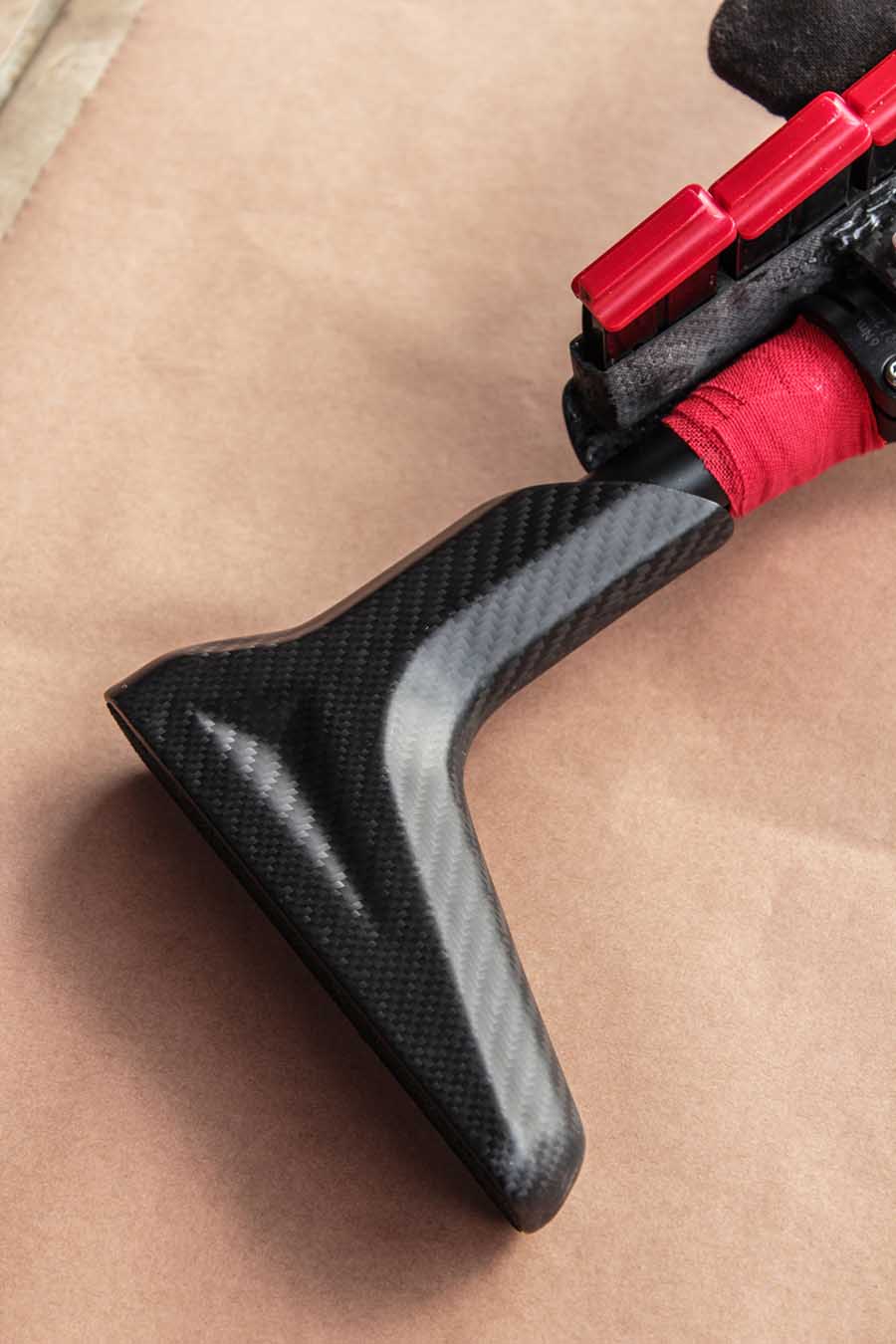

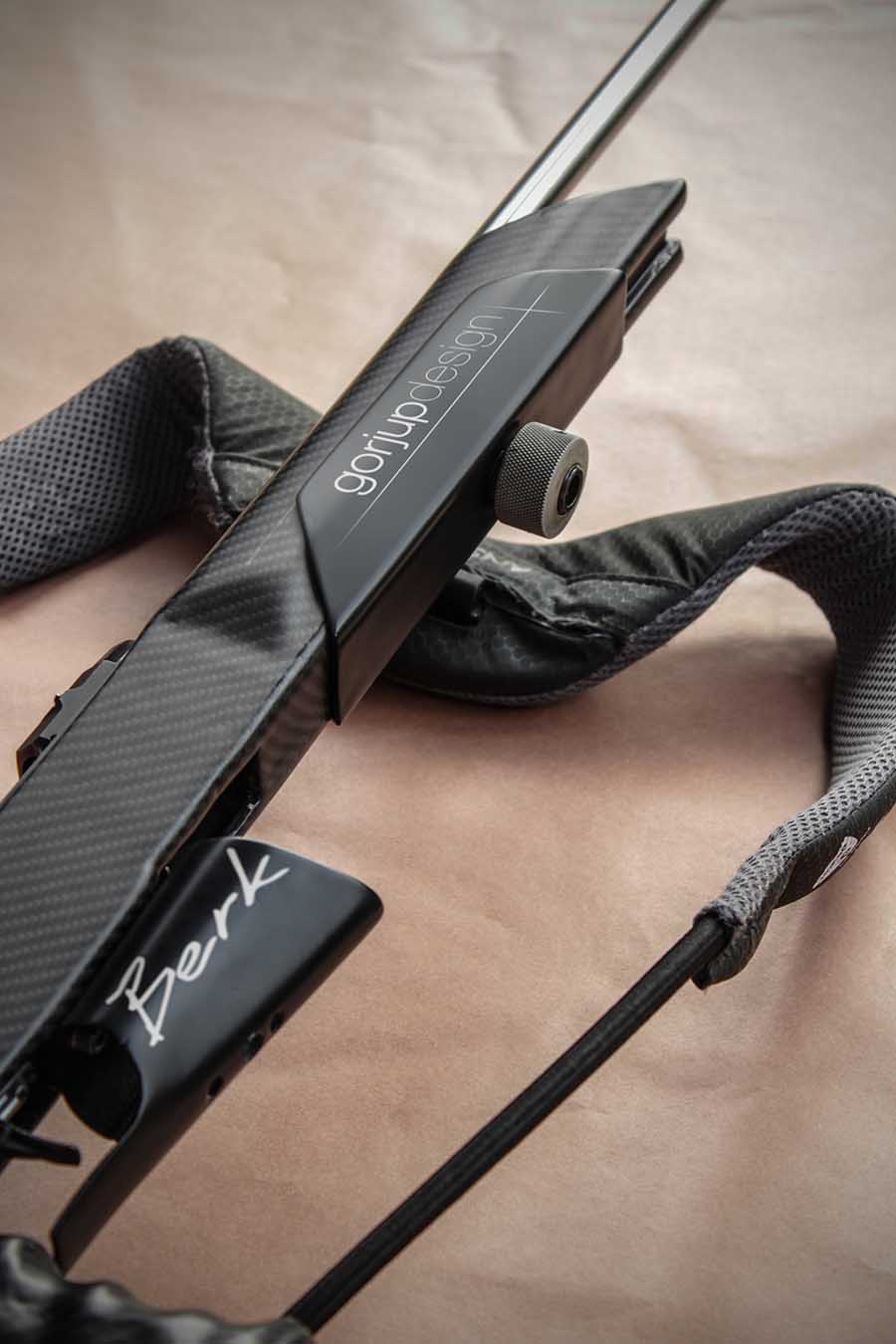

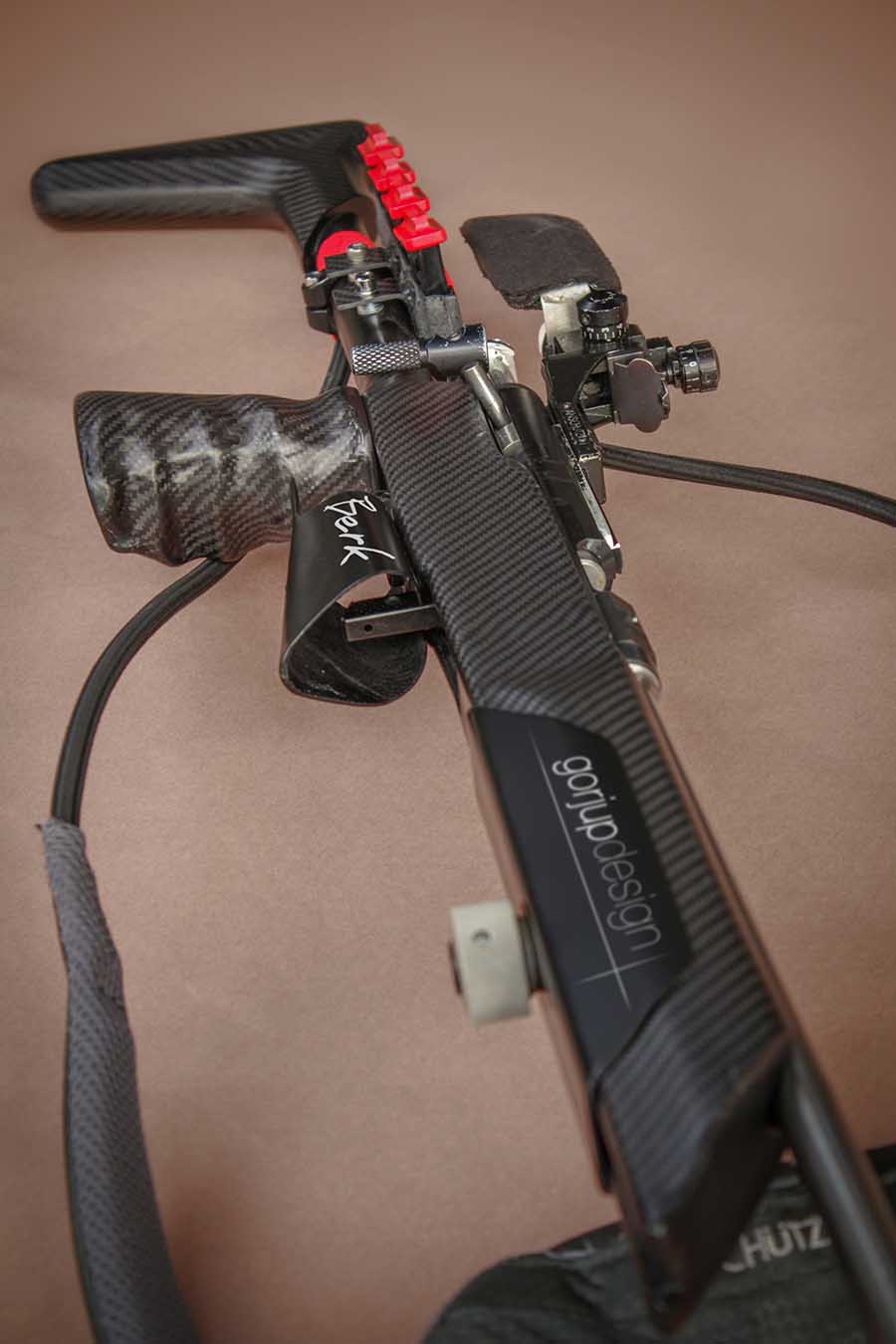

After the test with prototype were finished, the production process of final rifle stock began. Some photos of finished rifle stock are below.
And some photos of entire team:
From left to right: Jure Berk (manufacturer), Peter Dokl (user), Žiga Gorjup (designer)
-

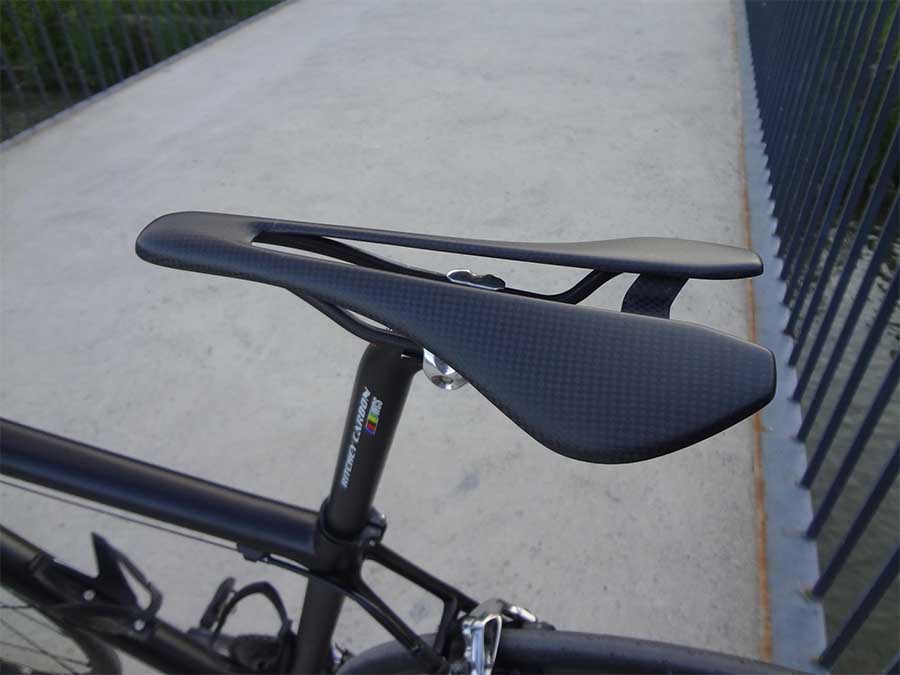

Carbon bicycle saddle for berk composites

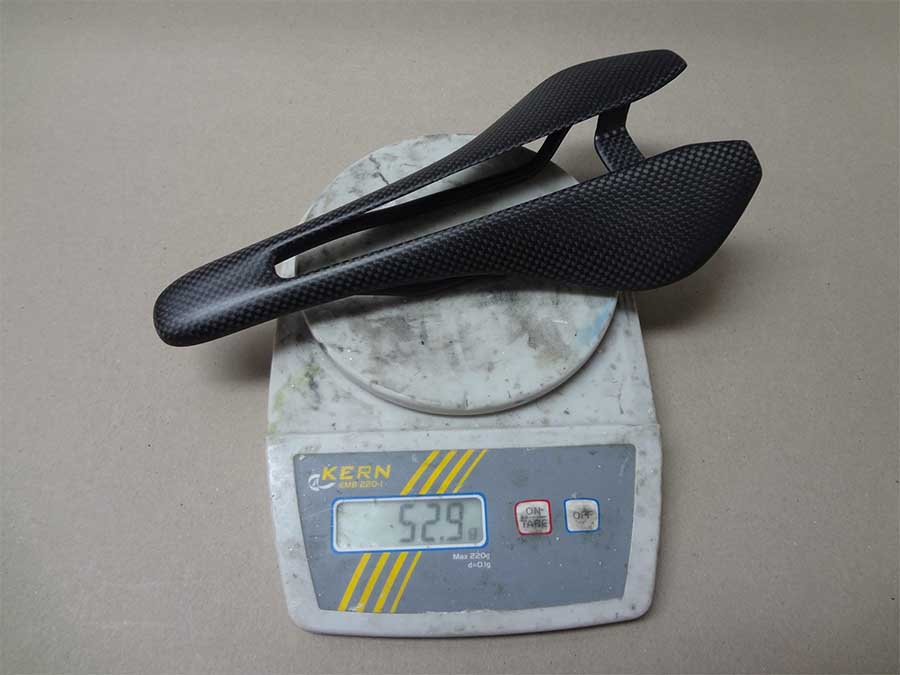

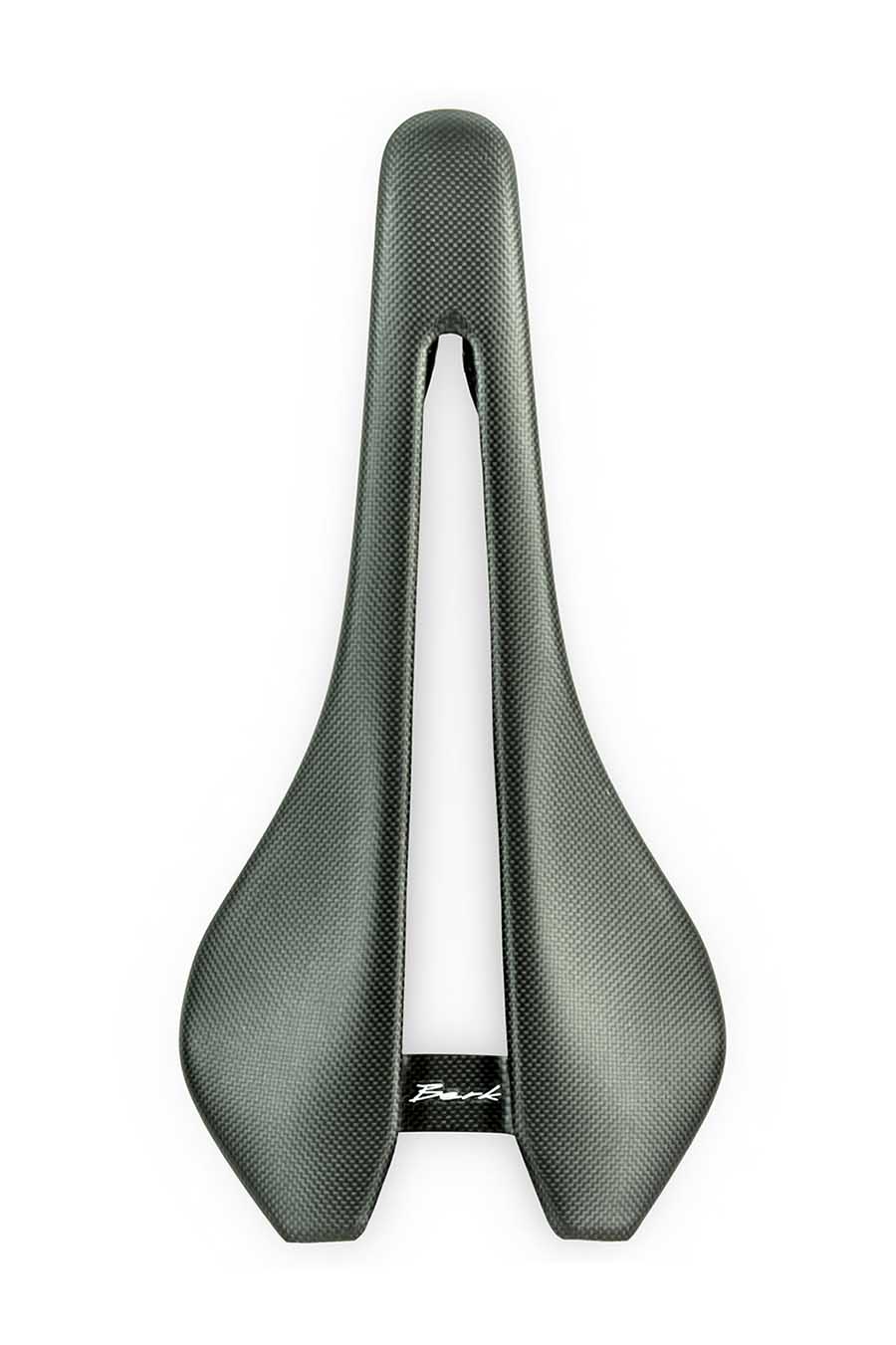

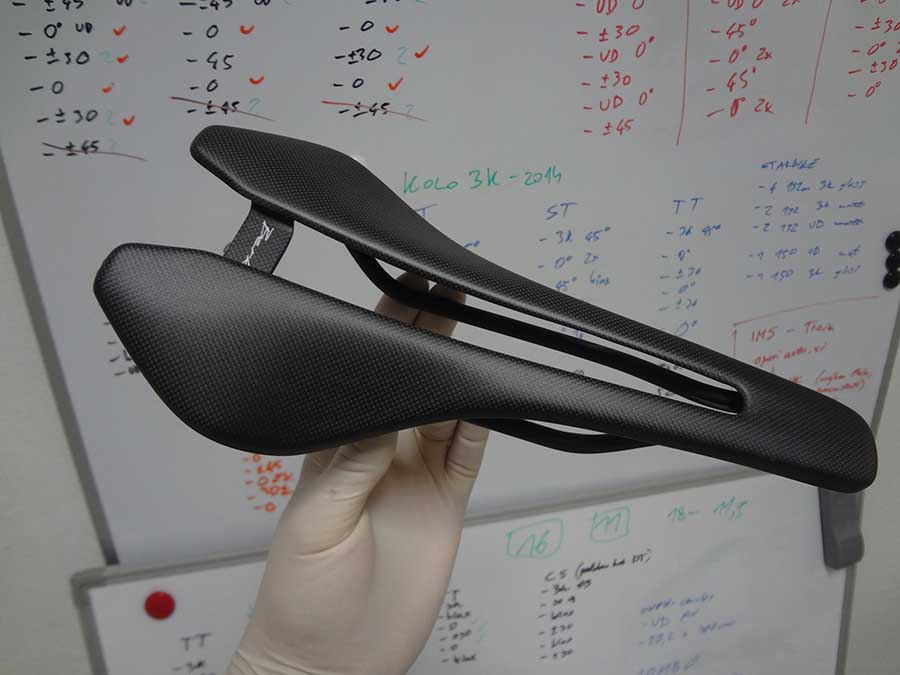

GorjupDesign in cooperation with Berk Composites designed a new, ultra light and ergonomic carbon fibre saddle for competition bicycles. The weight of manufactured and lacquered saddle is under 66g.
The saddle comes in different weaving patterns (1K, 3K nad UD), and different lacquered finishes (matte, gloss or padded).
The design process:

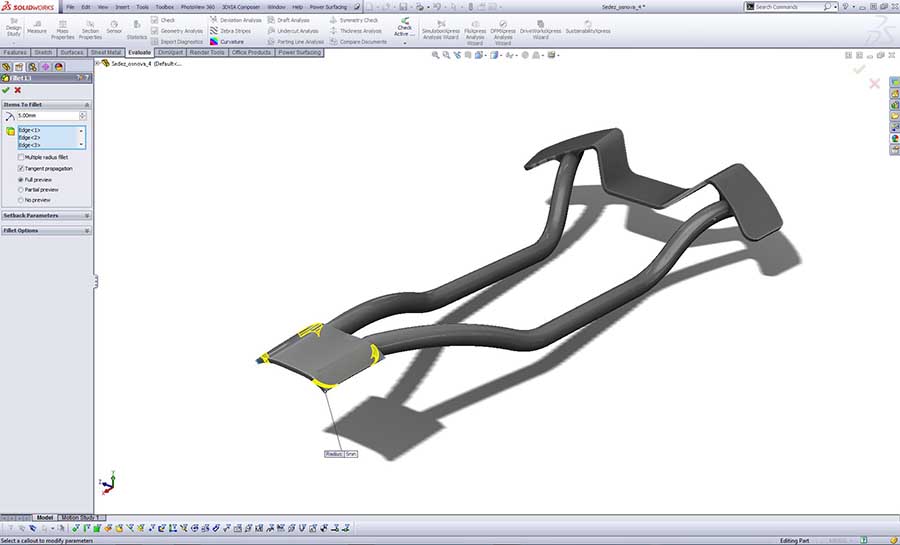

CAD modelling

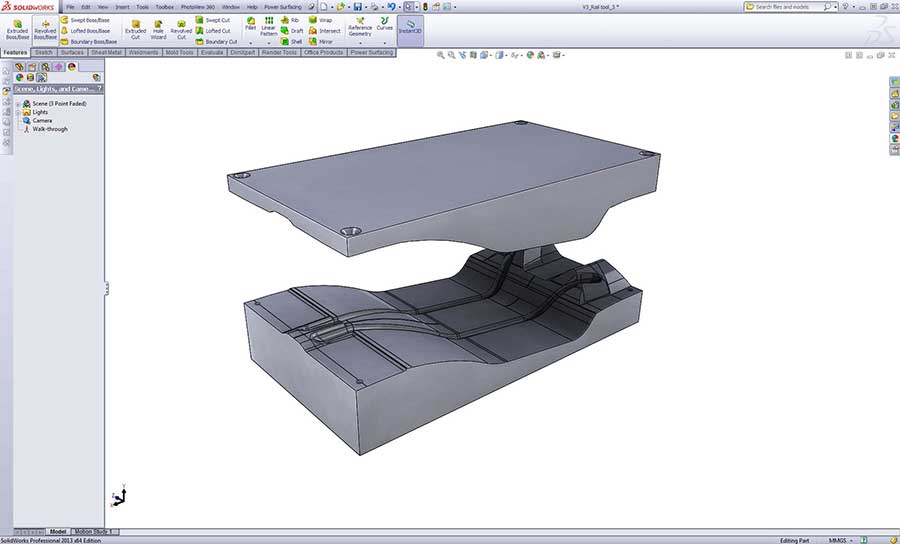

Aluminum tool 3d modelling for CNC milling
First prototype
Final model after some ergonomics correction

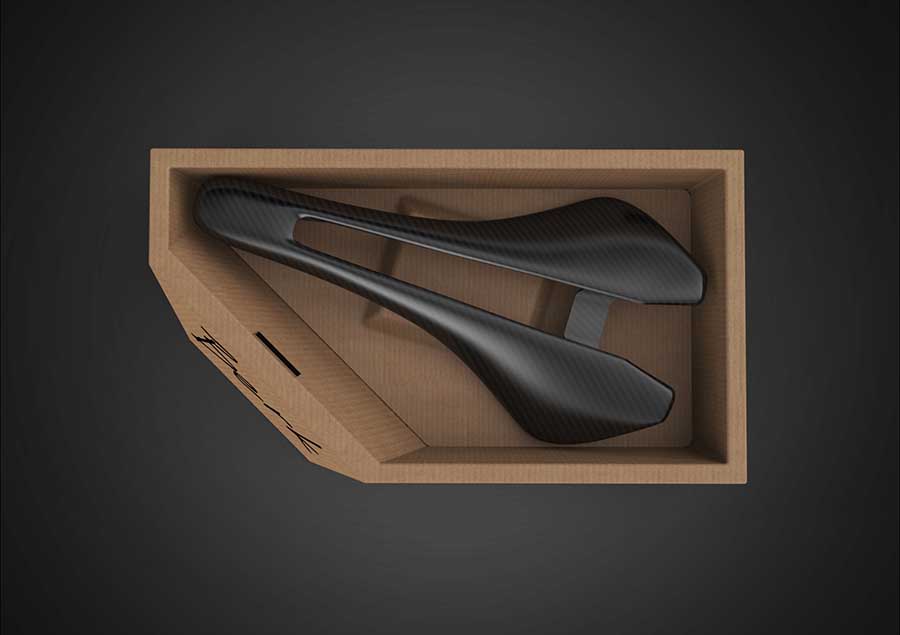

Packaging box design idea
-
Contest winning Camel Ashtray

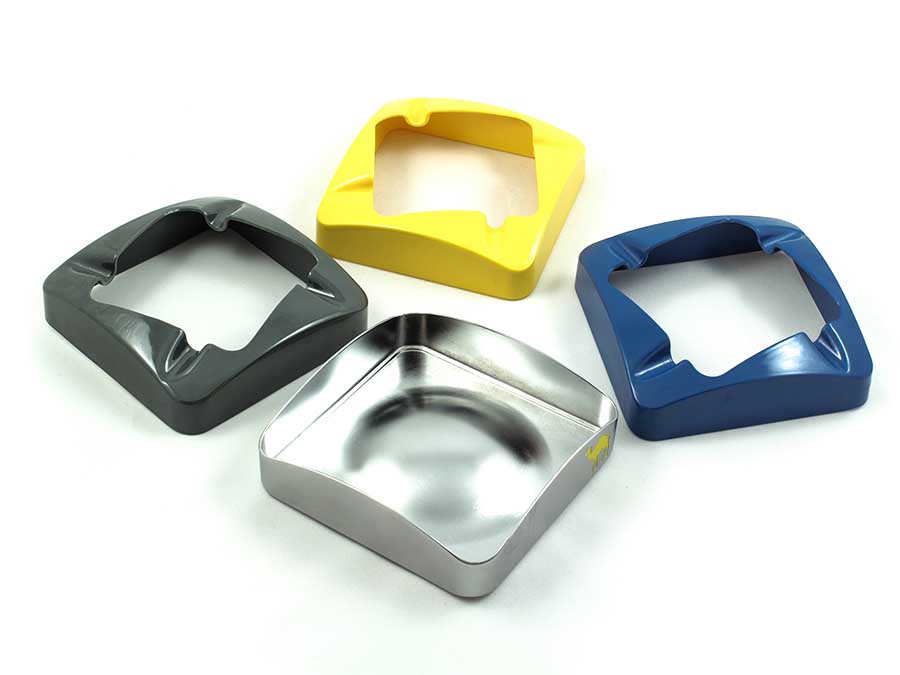

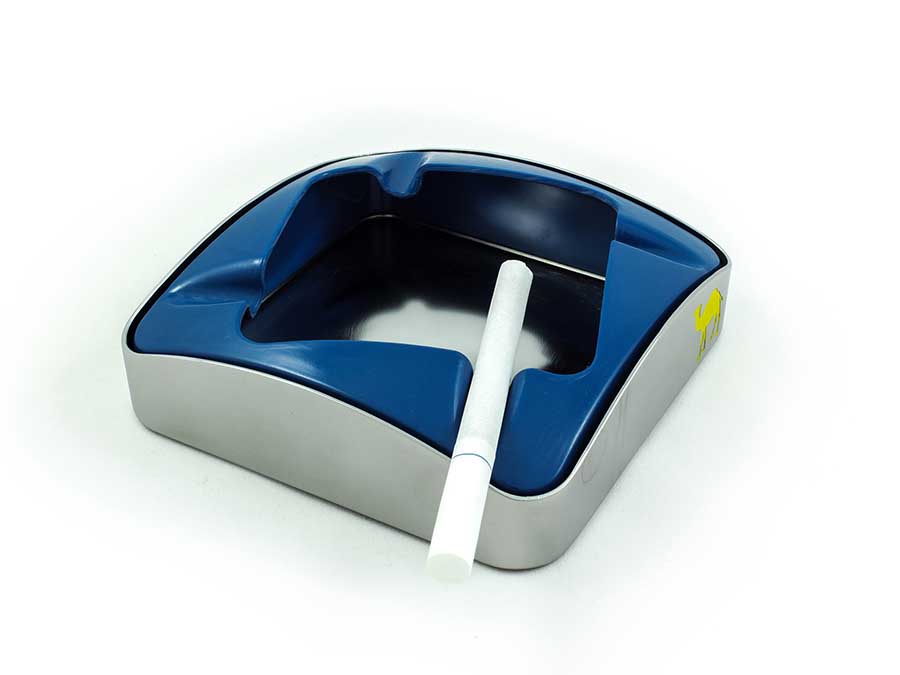

An international contest winning design of table ashtray for JTI's Camel brand.
Ashtray consists of two parts - upper melamine resin windproof cover and metal base. The metal base can also be used separately, without the windproof cover.
The idea was to make an elegant, modern, slick and easy to manufacture shape regarding all the main functionalities - windproof, stackability and under 350gr of weight.
The windproof covers are available in 3 colors - blue, yellow and grey.
Each ashtray comes with engraved GorjupDesign logo.
The ashtrays hit the bar and restaurants tables worldwide in june 2014.

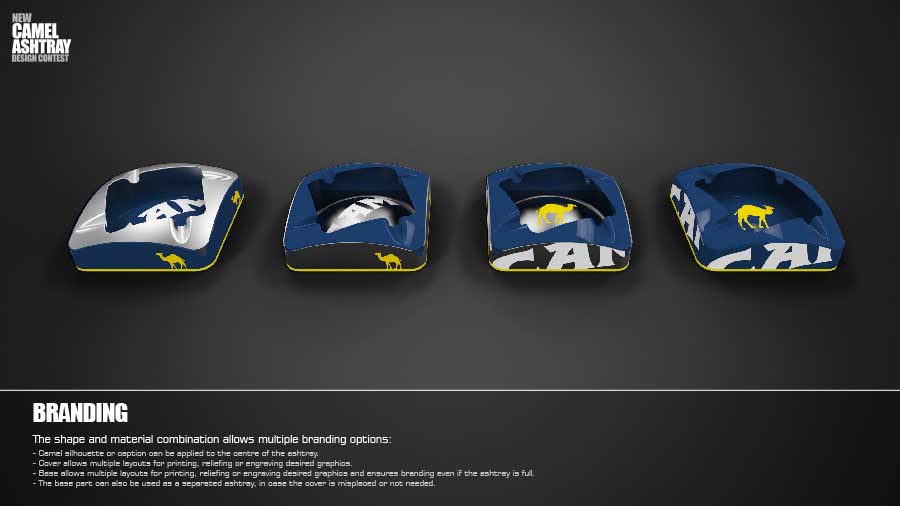

The presentation made for contest entry

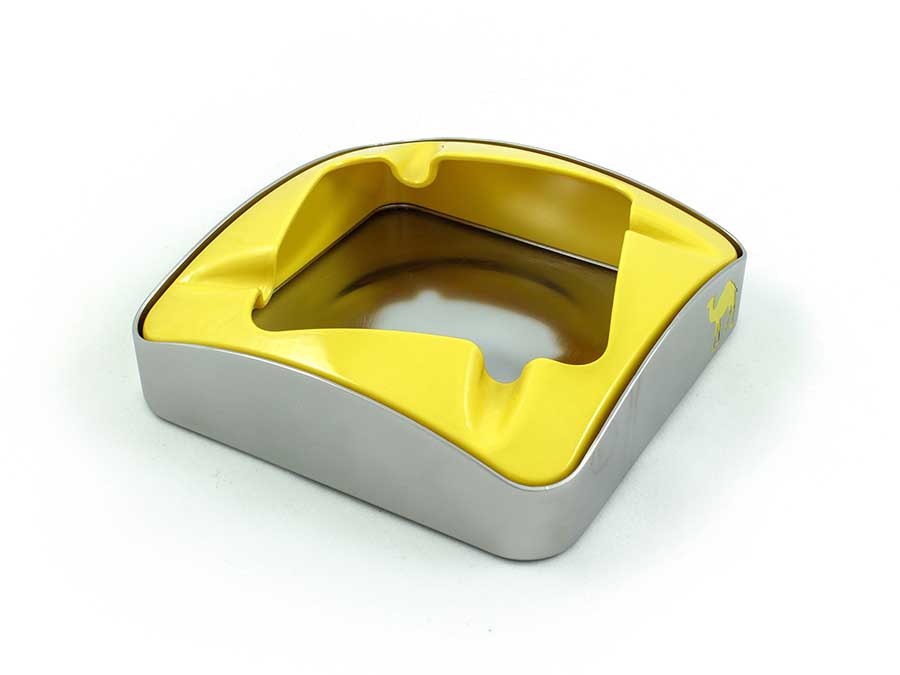

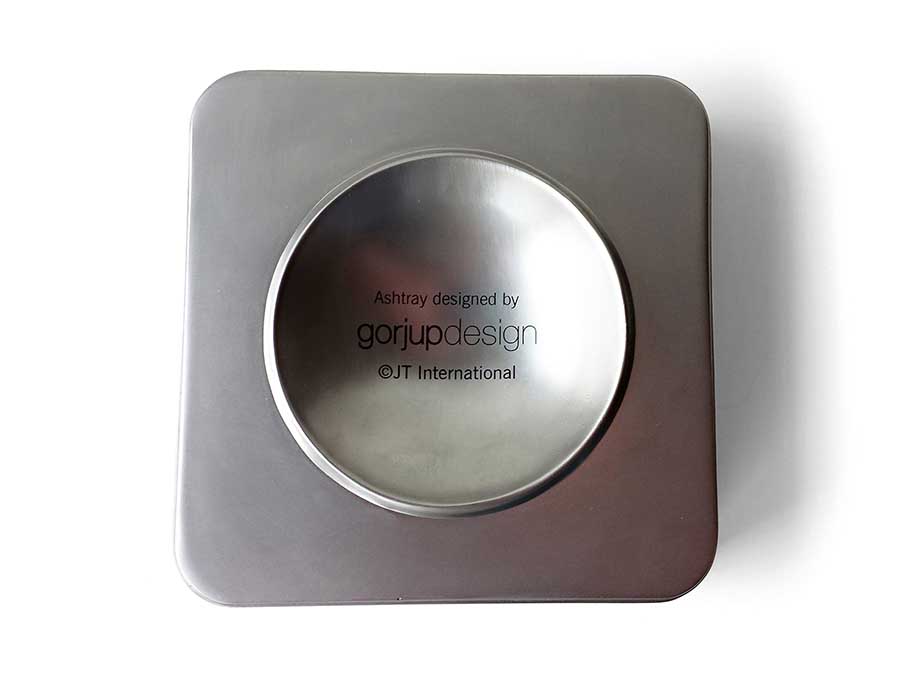

The final product photos
-

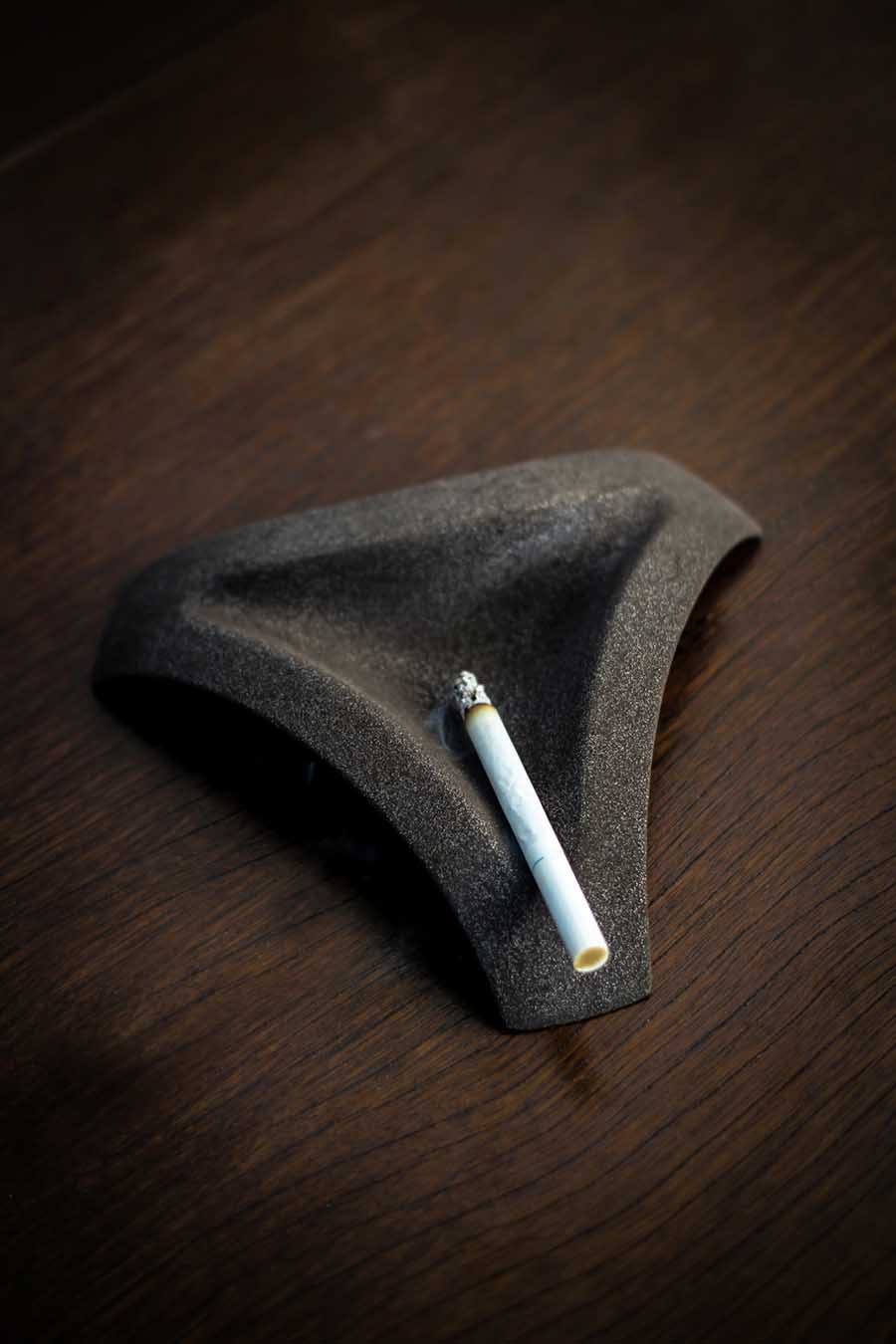

Concrete Ashtray #1
A concrete ashtray built completely by Gorjup Design, starting with idea over 3d model and silicone mold to final product casted from concrete like material.

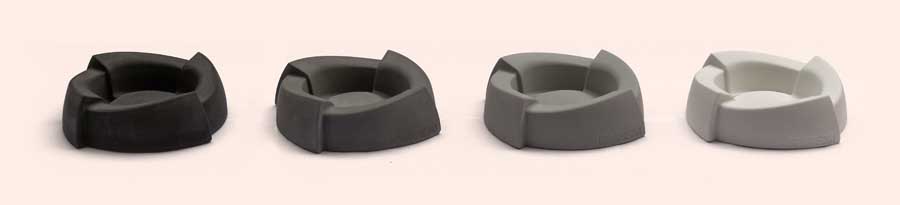

Several colors are available
The building process:

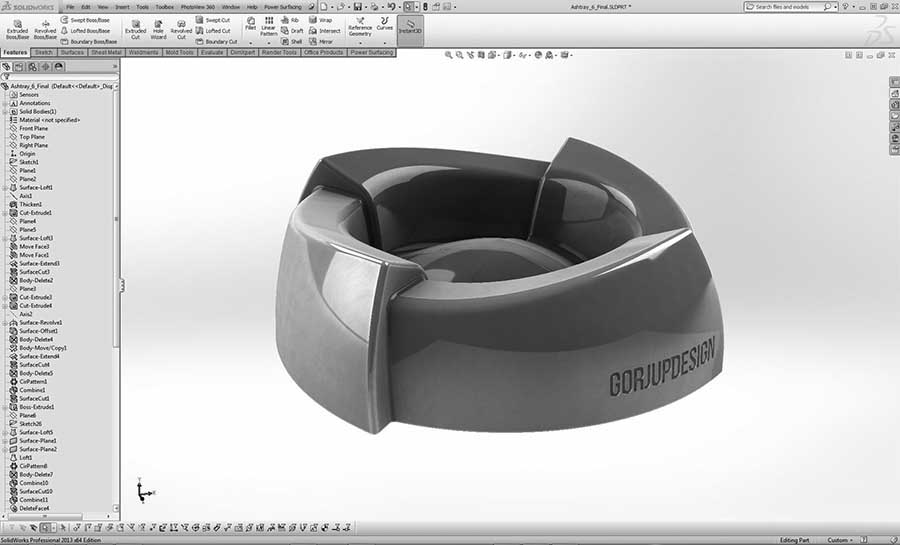

3d model made in SolidWorks

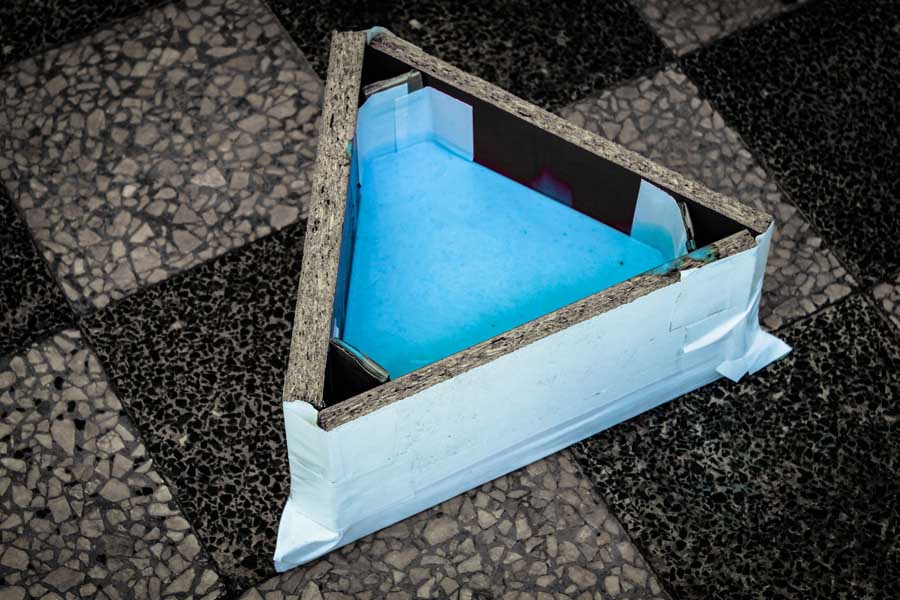

3d print

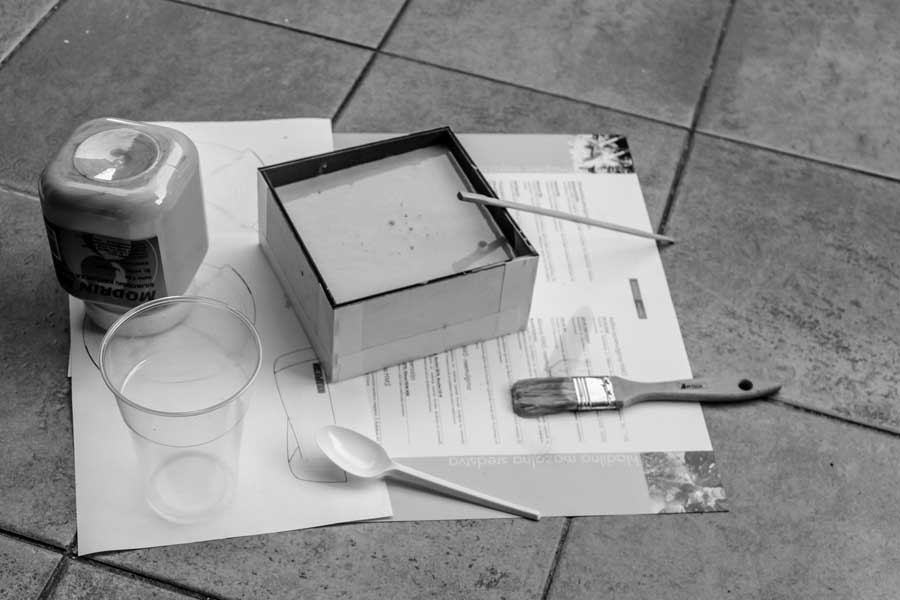

3d print placed in a box for casting the silicone mold
Casting the silicone mold

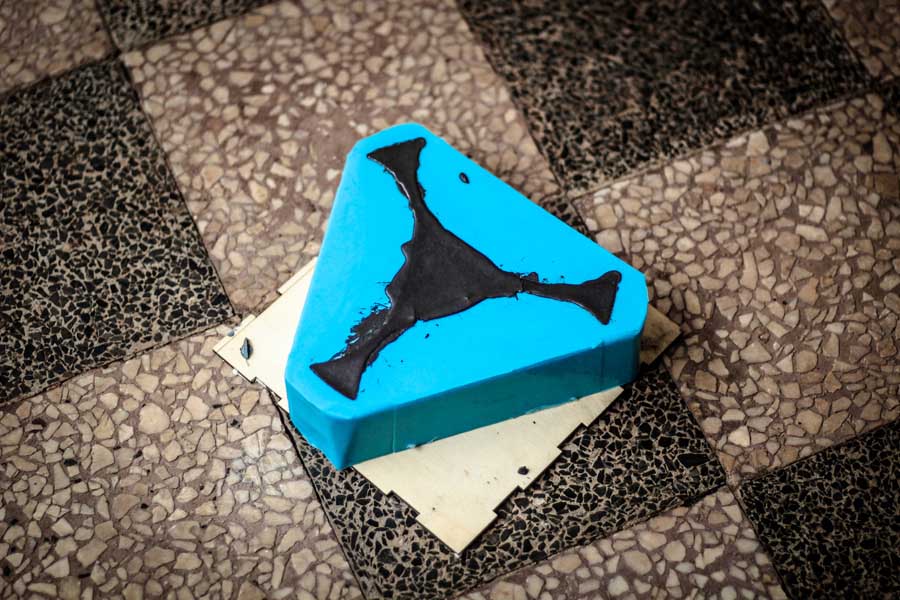

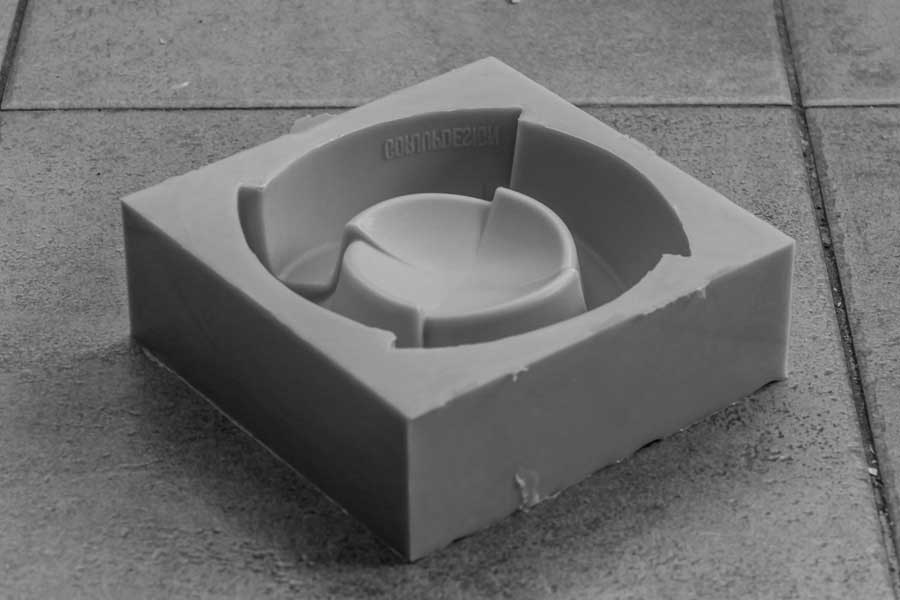

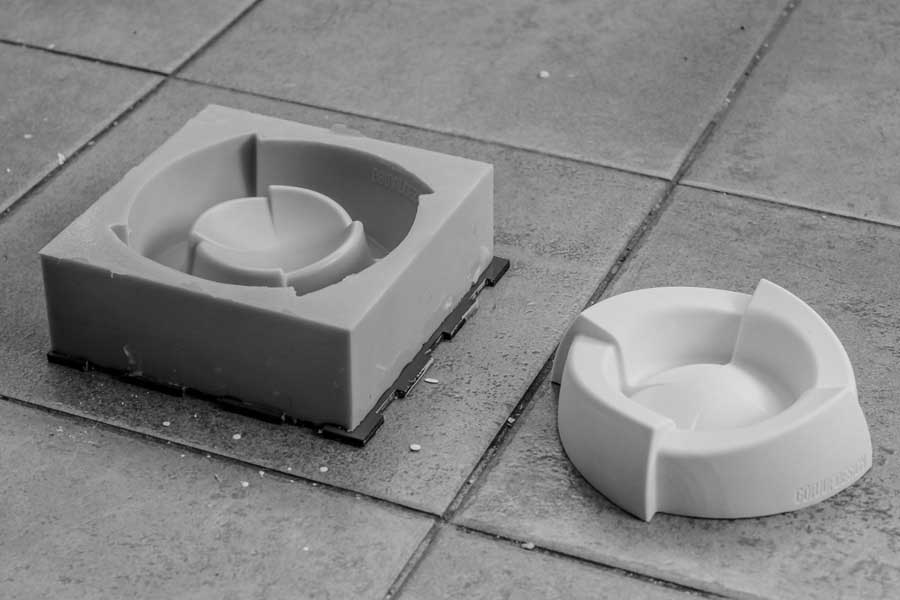

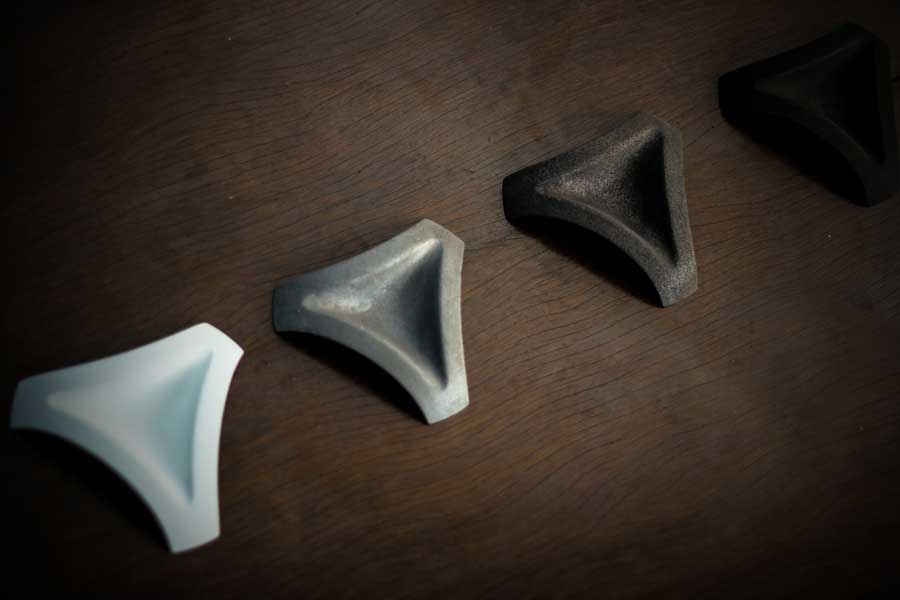

Casted silicone mold
Casting the concrete into the mold
Unmolding the casted object

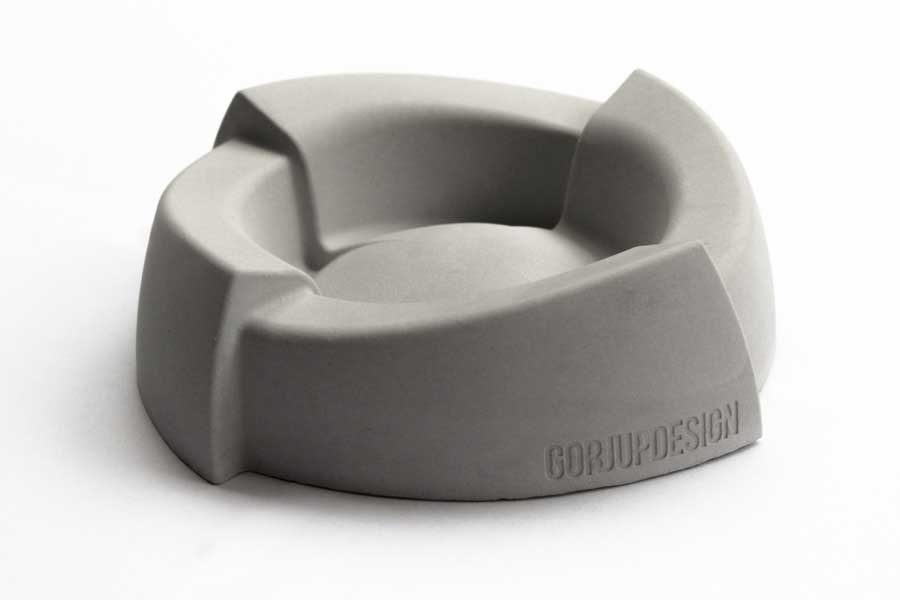

Final product in use
-
Concrete Ashtray #2
A second concrete ashtray built completely by Gorjup Design, starting with idea over 3d model and silicone mold to final product casted from concrete like material.
Several finishes are available:
matte black, dark sparkling, light sparkling, white and pure concrete
The building process:
3d model made in SolidWorks
3d print
3d print placed in a box for casting the silicone mold
Casting the silicone mold

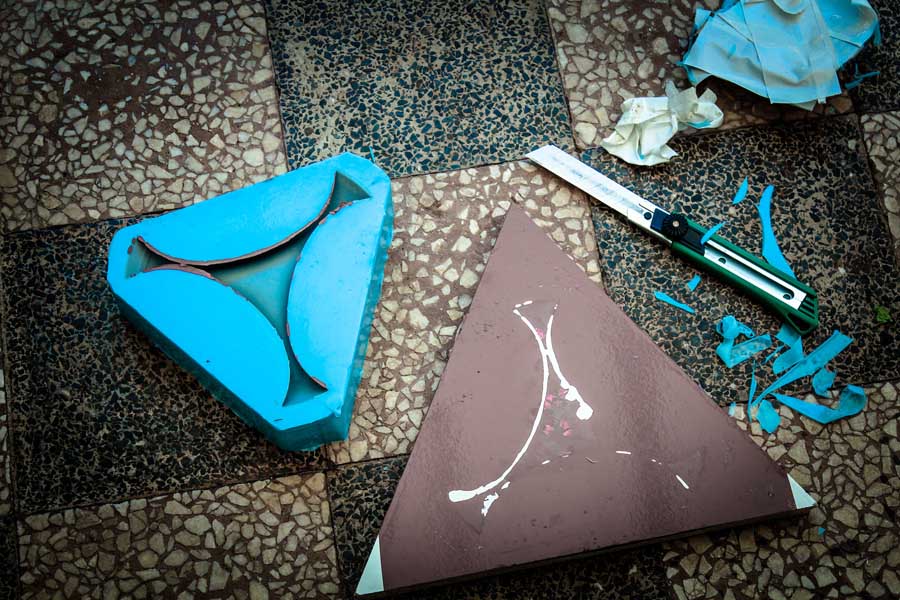

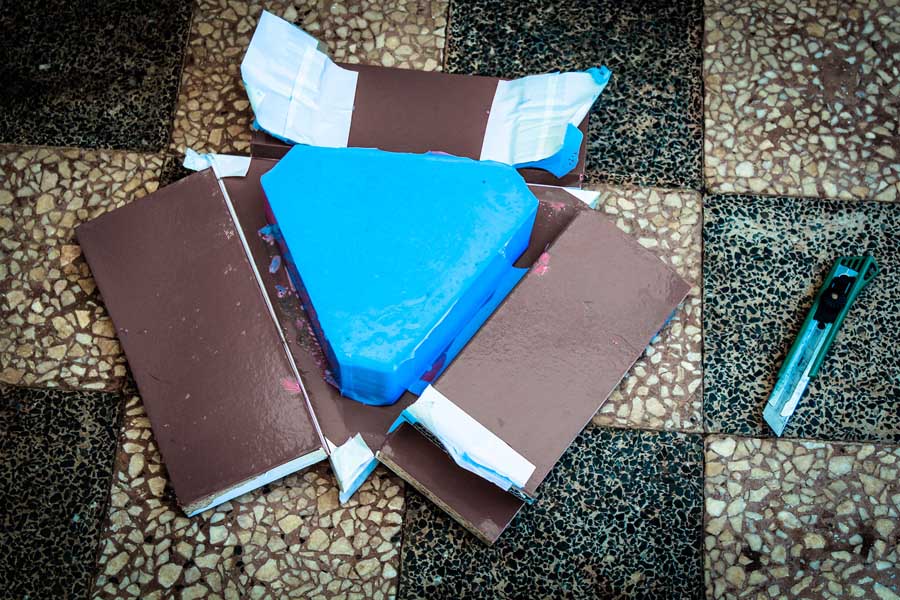

Cutting off excess material
Finished mold
Casting the concrete into mold
Removing the casted product from mold

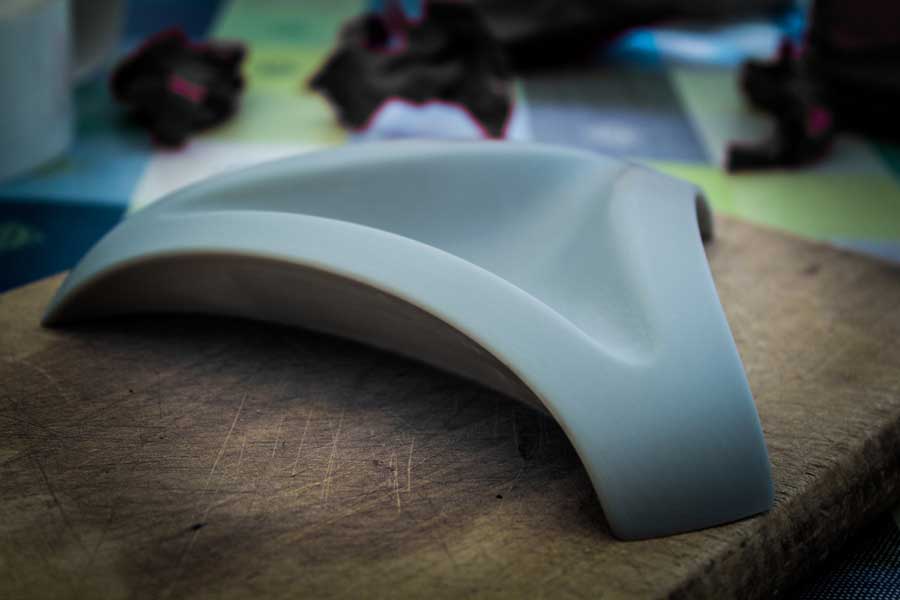

After some sanding the product is finished and ready to use

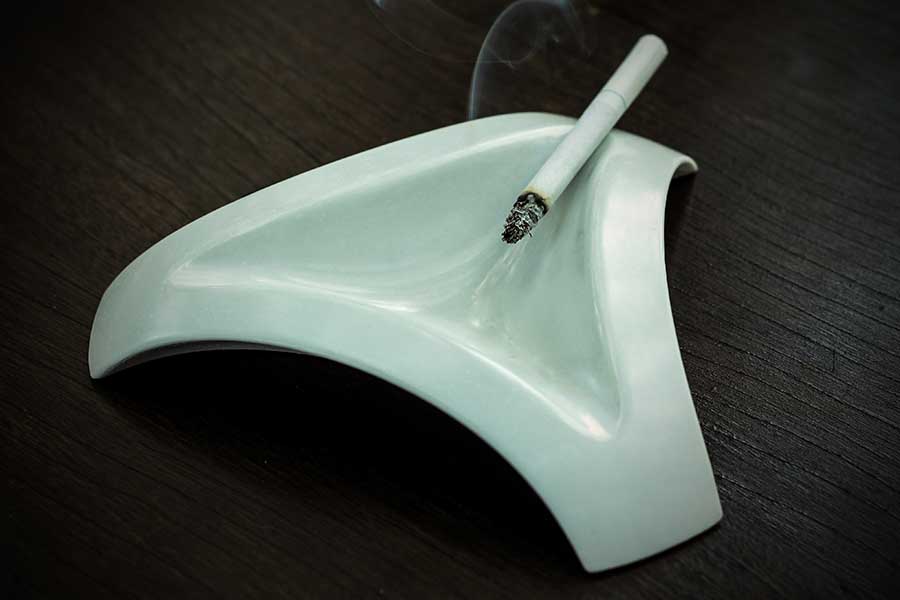

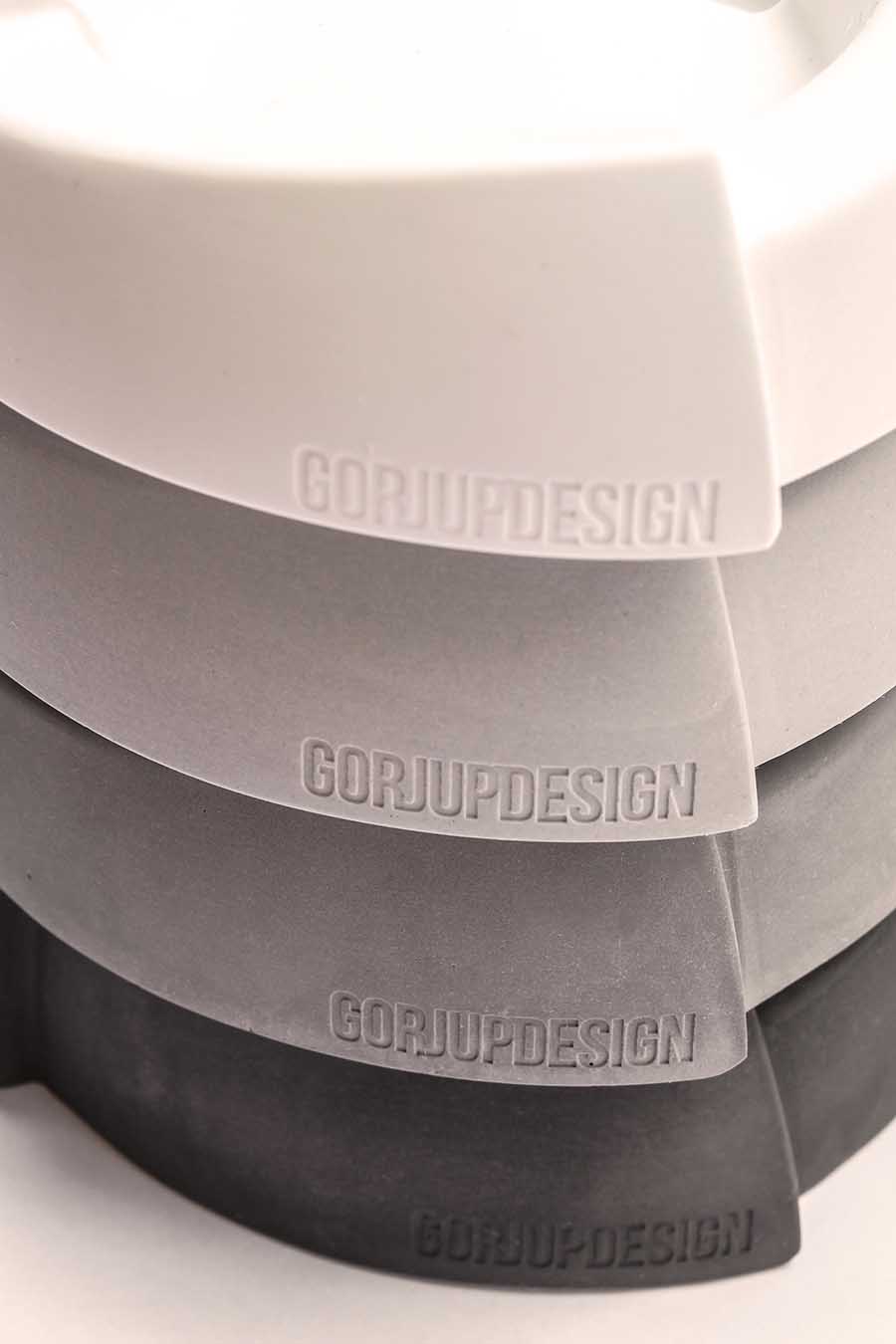

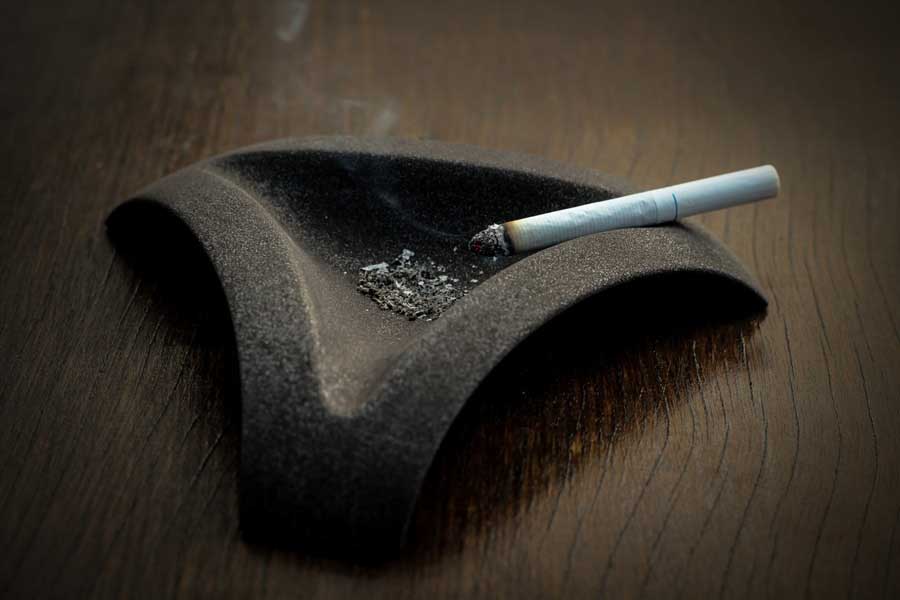

Final product photos:
-

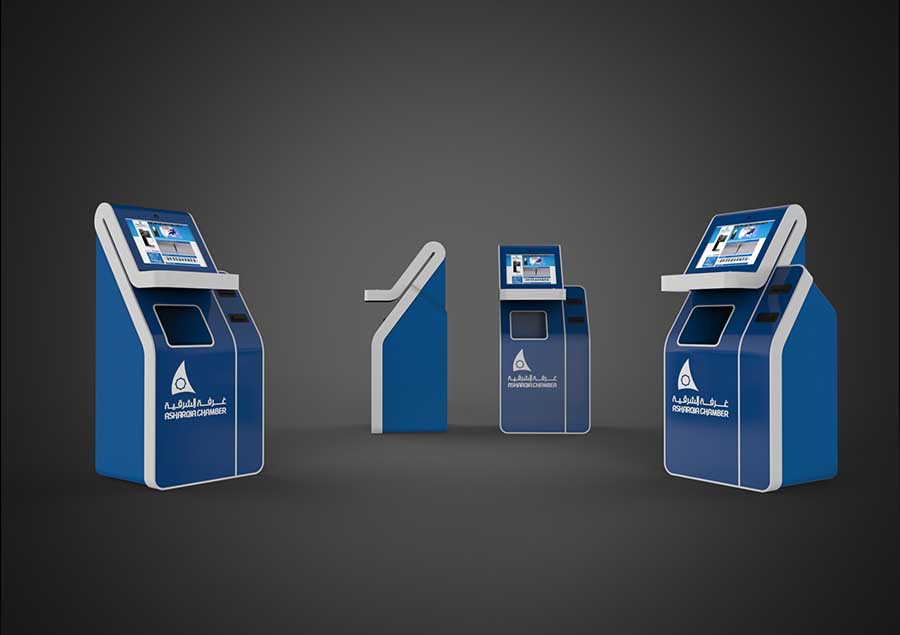

Betting Terminals for KT GROUP
GorjupDesign company won the international contest for betting terminal redesign and since then we are constantly designing new products for KT Group. Most of the products are made of sheet metal and are equipped with latest electronic and mechanical components.
The contest winning design was a betting terminal, which client later titled as "the beast"

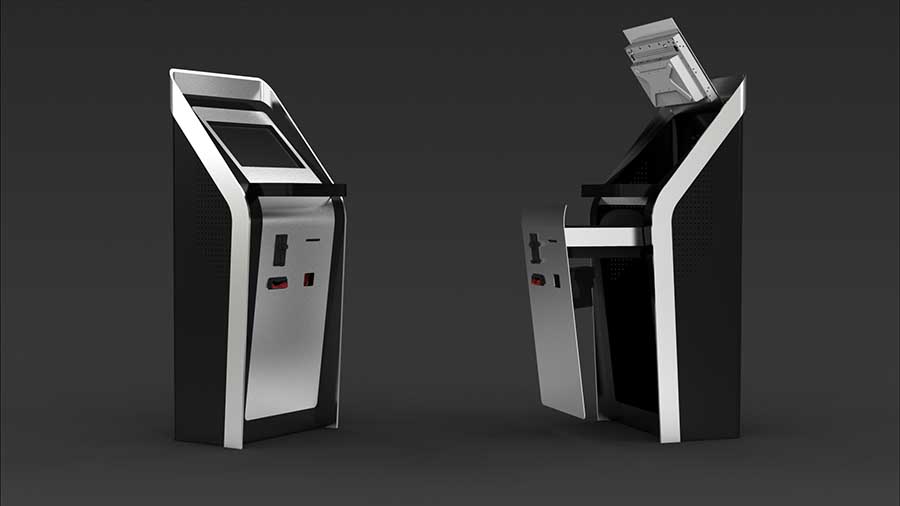

First renders and basic principles of redesign:
Short 3d animation:

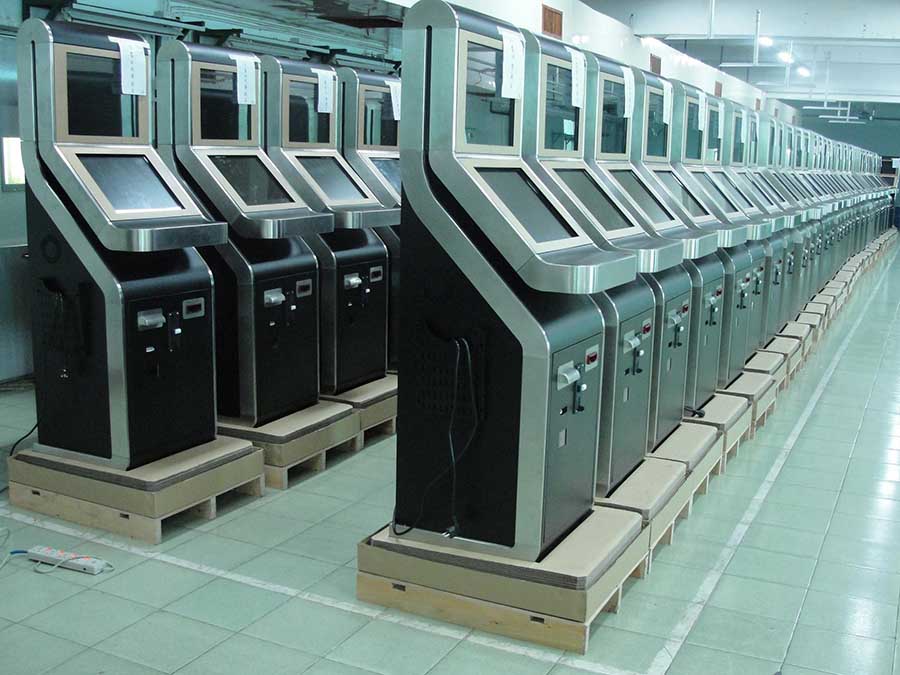

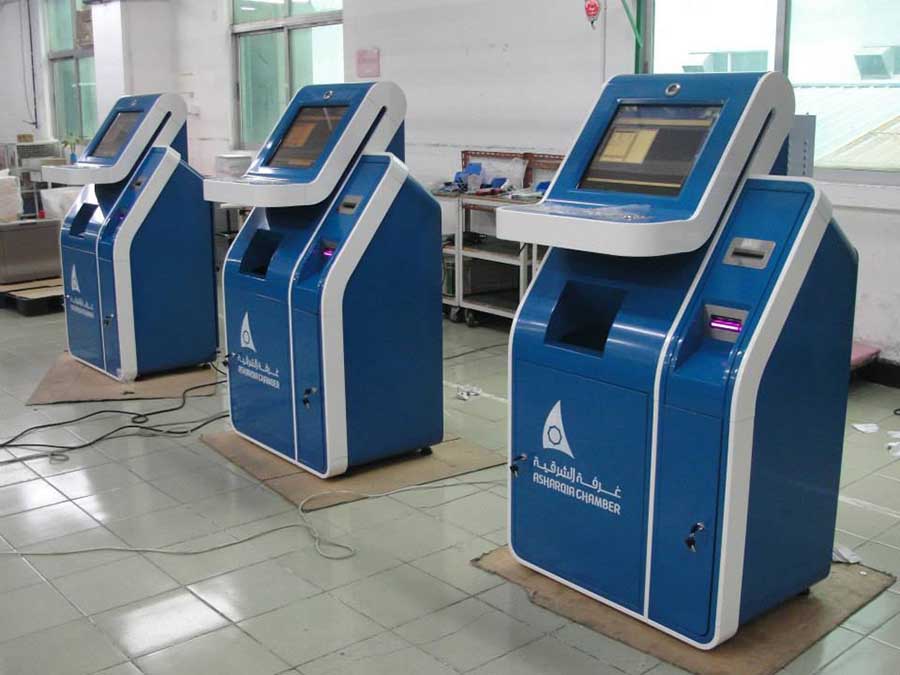

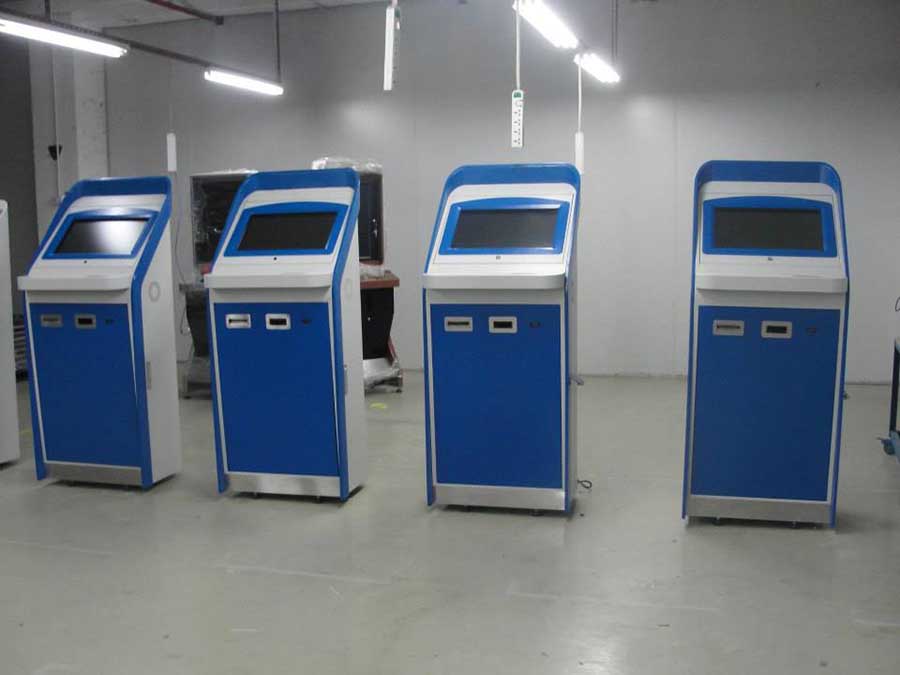

Photos from factory before shipping:

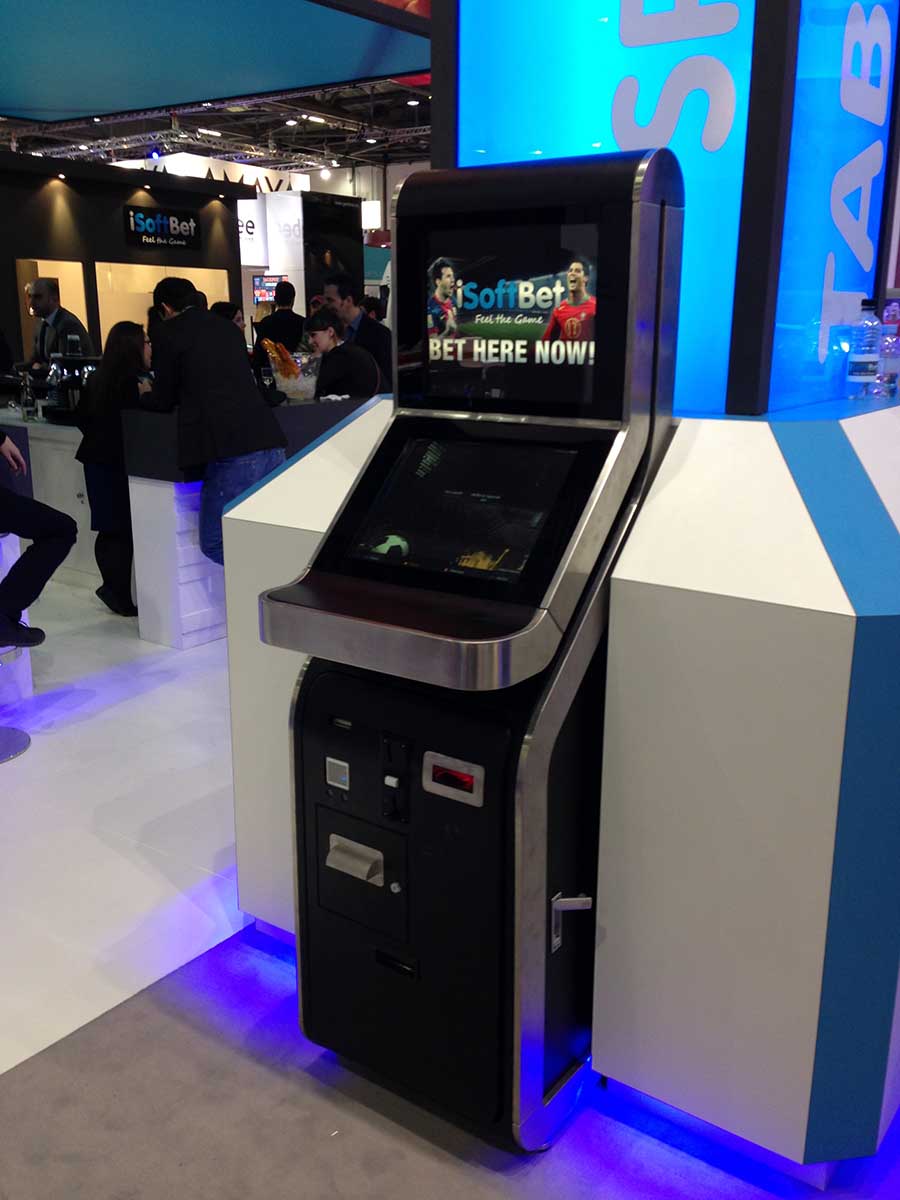

The machine was also exhibited on ICE London, Gaming Fair
SX5 terminal for Saudi Arabia

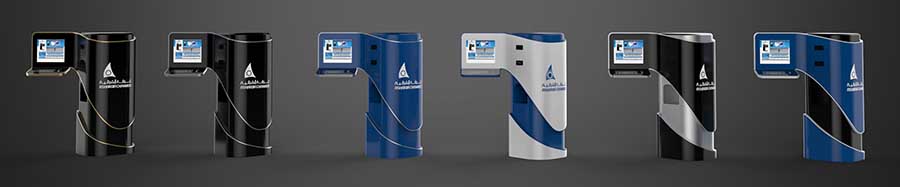

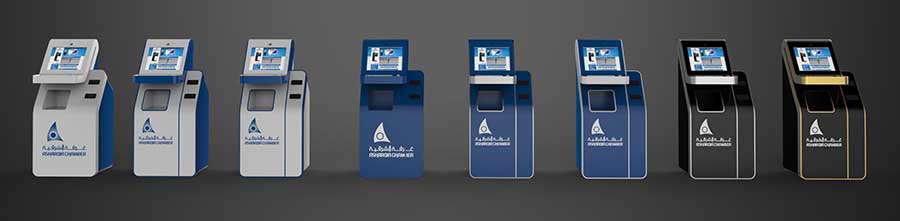

SX5 terminal for Saudi Arabian market colour variations
Final visualization before manufacturing

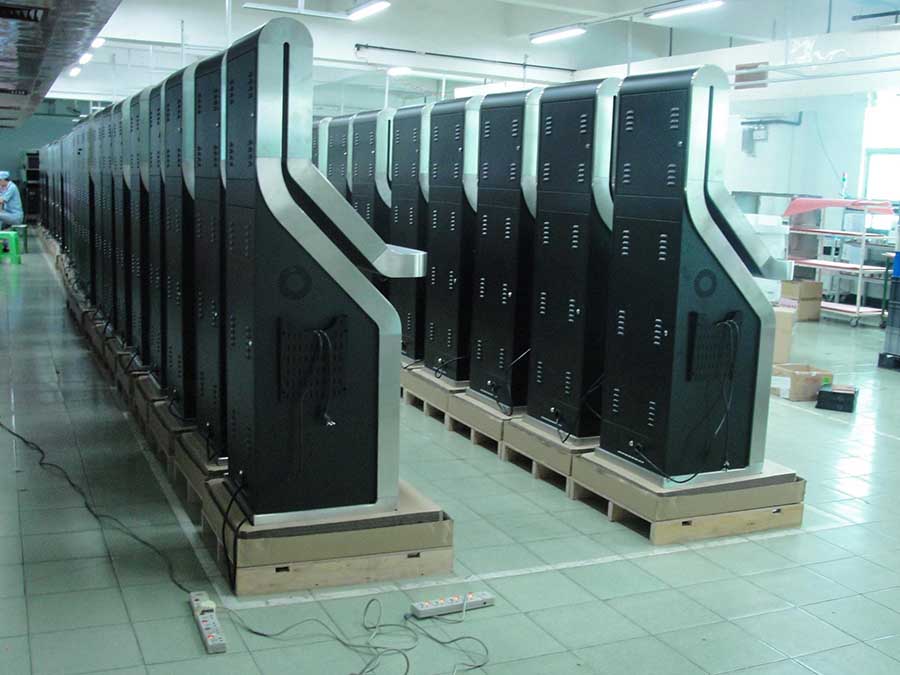

Photos from factory of manufactured machine before shipping
Evoque Betting terminal
Evoque 3d visualizations with various colour options
Photos from factory of manufactured machine before shipping
Concepts

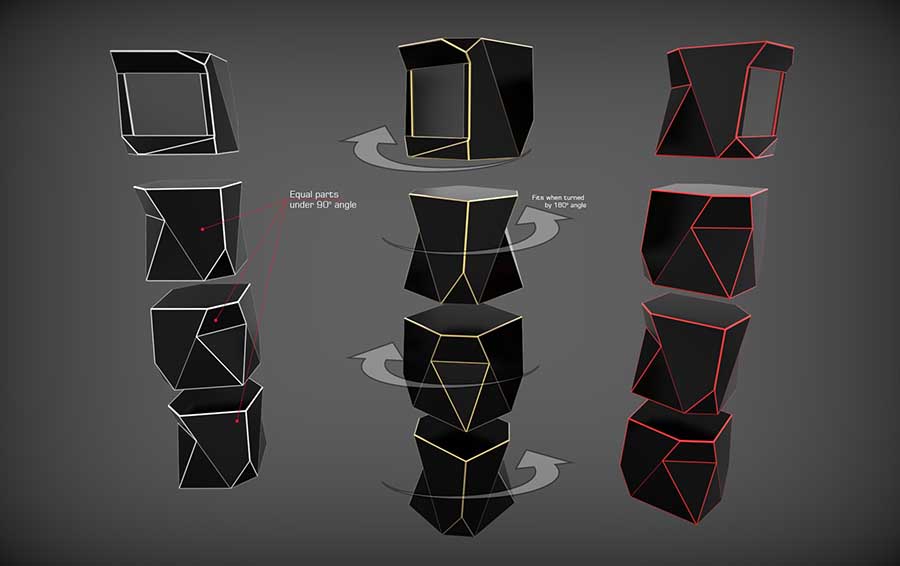

A concept of a coupon terminal for Hong Kong as a modular terminal made of 3 equal edgy boxes, that are rotated by 90° and are still forming continuous lines of various colours.
The luxurious version of the SX5 terminal for Saudi Arabia
Several colour variations
-
Camera dolly 4axcam

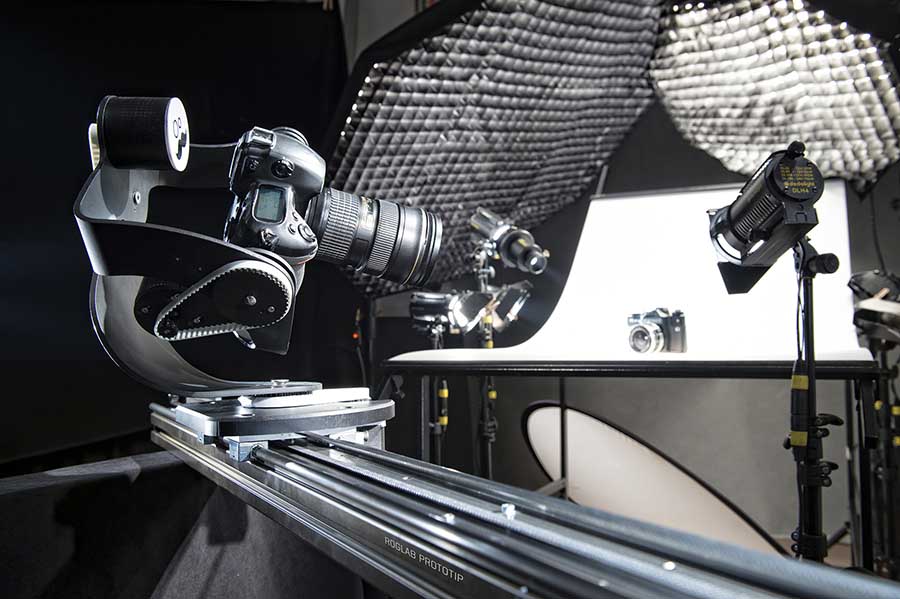

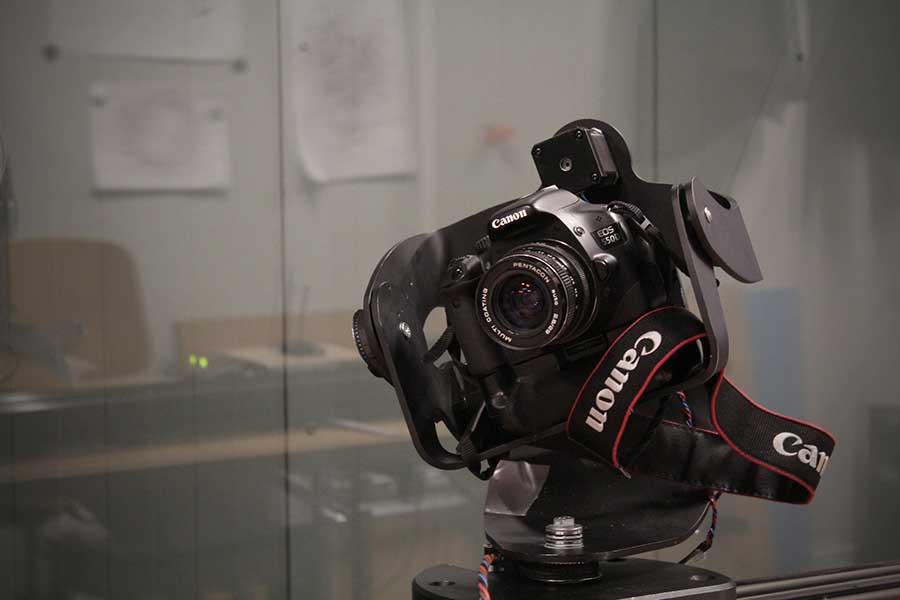

4axCam is a motorised cart, or a so-called pan / tilt system for a DSLR camera or a smaller film camera. Apart from the basic movement along the rails (shift and slide), it also enables rotation around the vertical (pan) and horizontal (tilt) axes. These camera movements make it possible for us to create high-quality dynamic shots that greatly increase the production value of our final recording. The repeatability of the individual moves helps us create extremely demanding effects. Apart from its primary use, i.e. helping us to record films, this accessory also helps us create dynamic shots in stop-motion and time-lapse techniques.
The 4axCam was developed by team of good friends and ex-college mates:
- Martin Vovk (programming, software)
- Alen Bubanja (mechanics)
- Žiga Gorjup - Gorjup Design (design, mechanics)
The project was exhibited in 2014 on The first annual exhibition of the year's RogLab production called:
ROGLAB – THE FACTORY THAT IS MAKING ITSELF
EXHIBITION OF PROTOTYPES
Photo: Branko Čeak and Jože Maček
Some photos of prototype testing

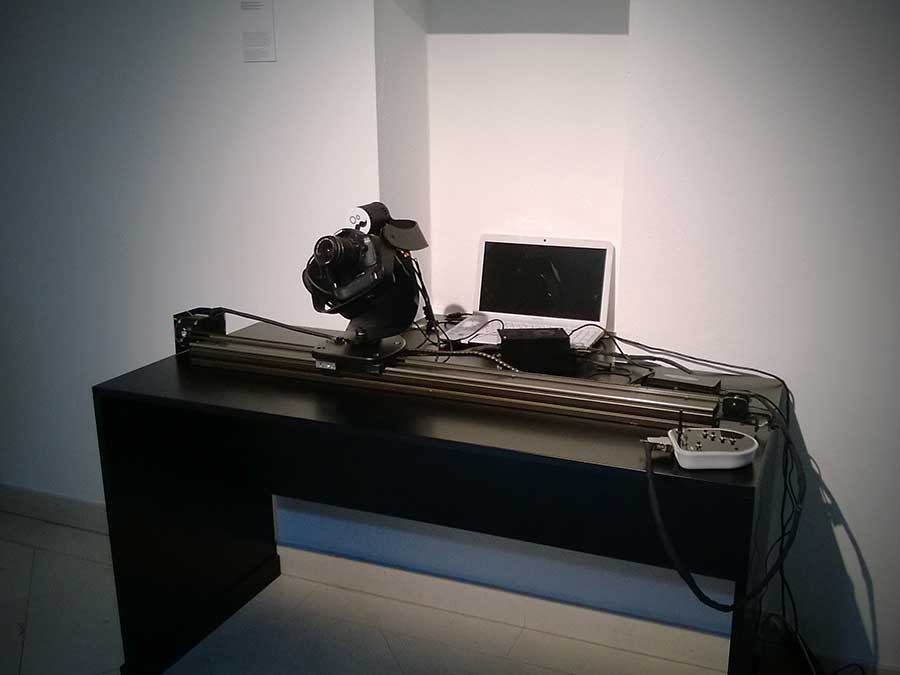

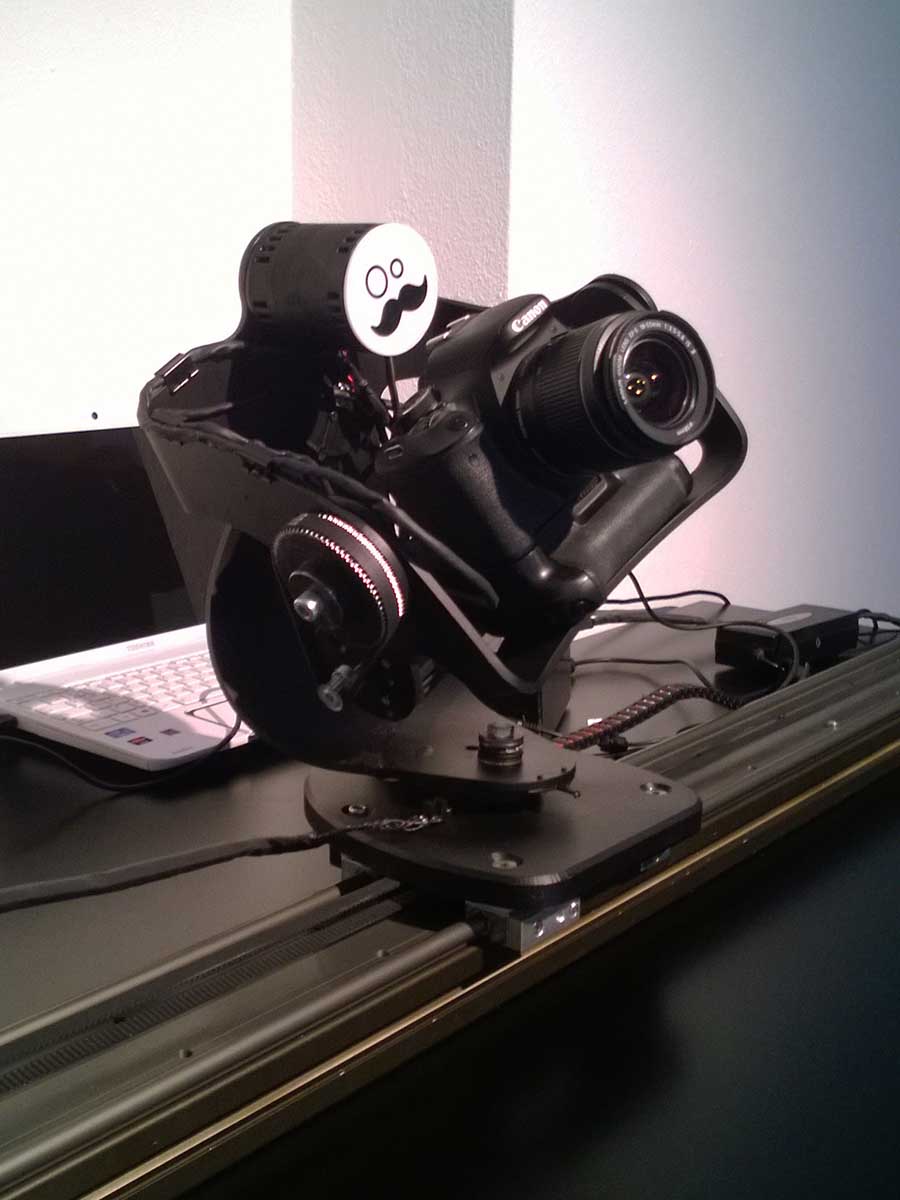

Žiga Gorjup and Alen Bubanja posing with working prototype of 4axCam and first mock-up made of aluminum sheets
Martin Vovk testing the interaction between software and mechanics
Filming the test movie
Photos from exhibition opening day
The 4axCam presentation in exhibition catalogue
-
Carbon Fibre Chair Concept #1

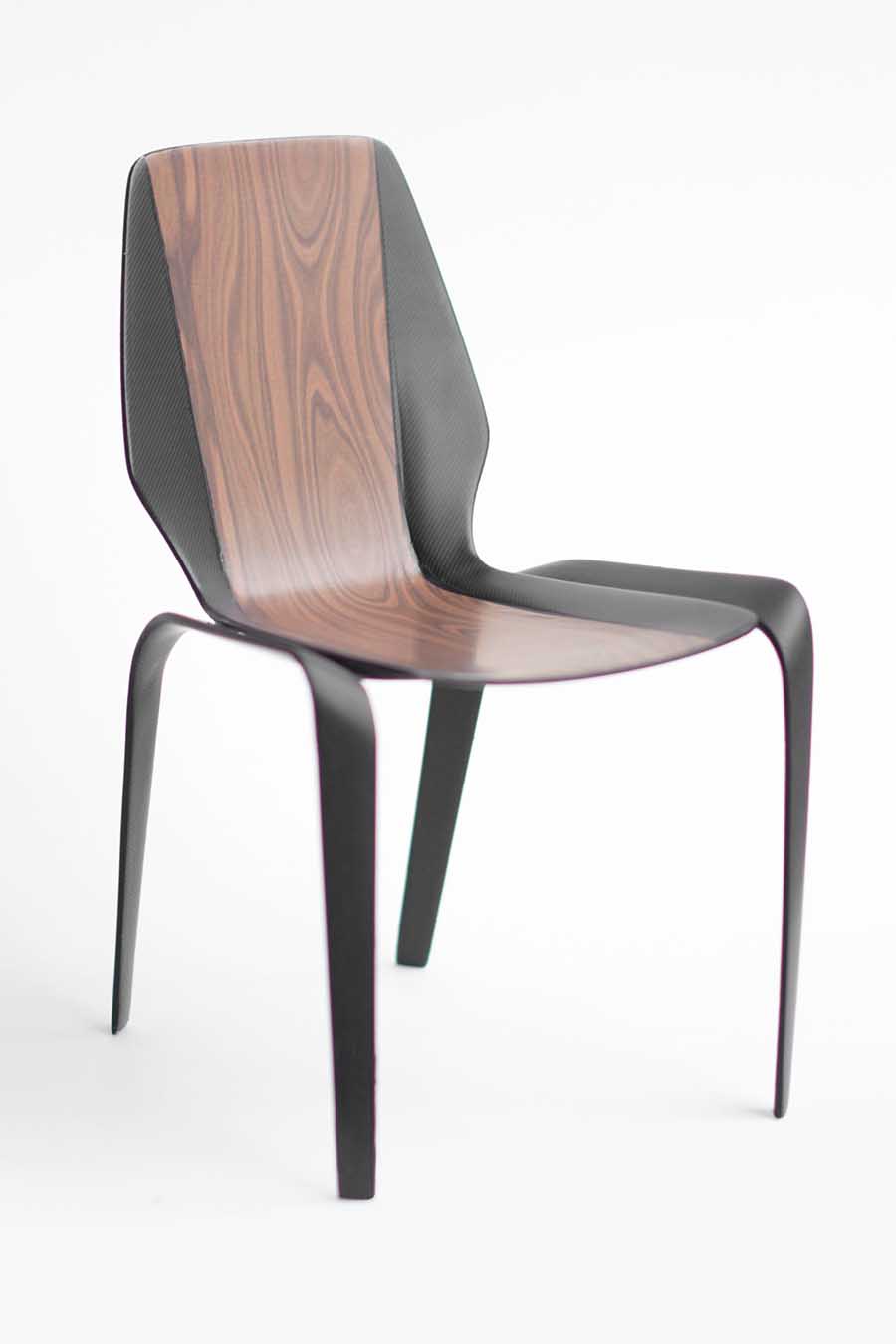

A concept of Carbon Fibre Chair in combination with veneer wood.
The 3d model was 3d printed, sanded, polished, wrapped in printed decals and laquered. See the details below.
First visualizations:
Photo of raw 3d printed model in 1:5 scale:

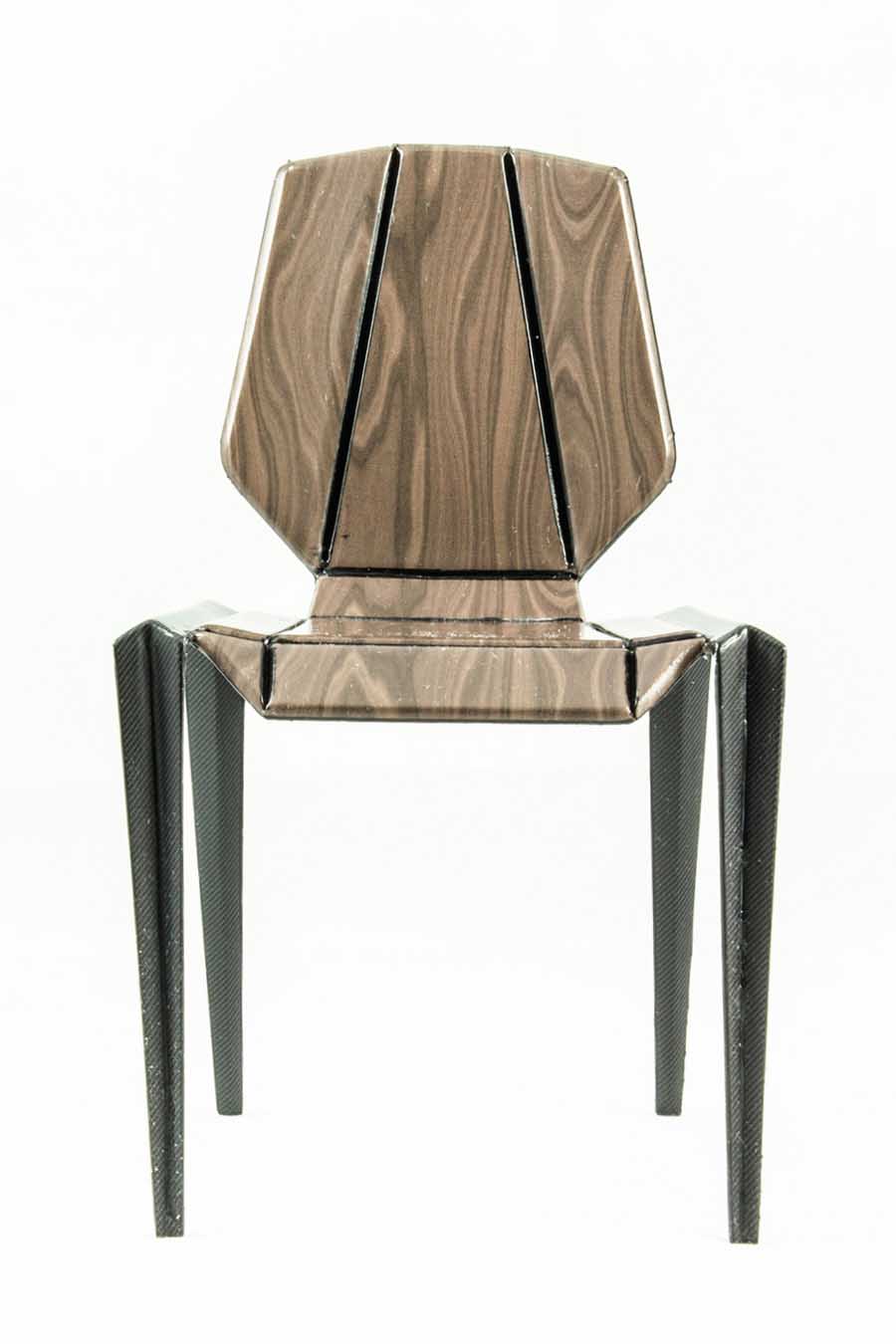

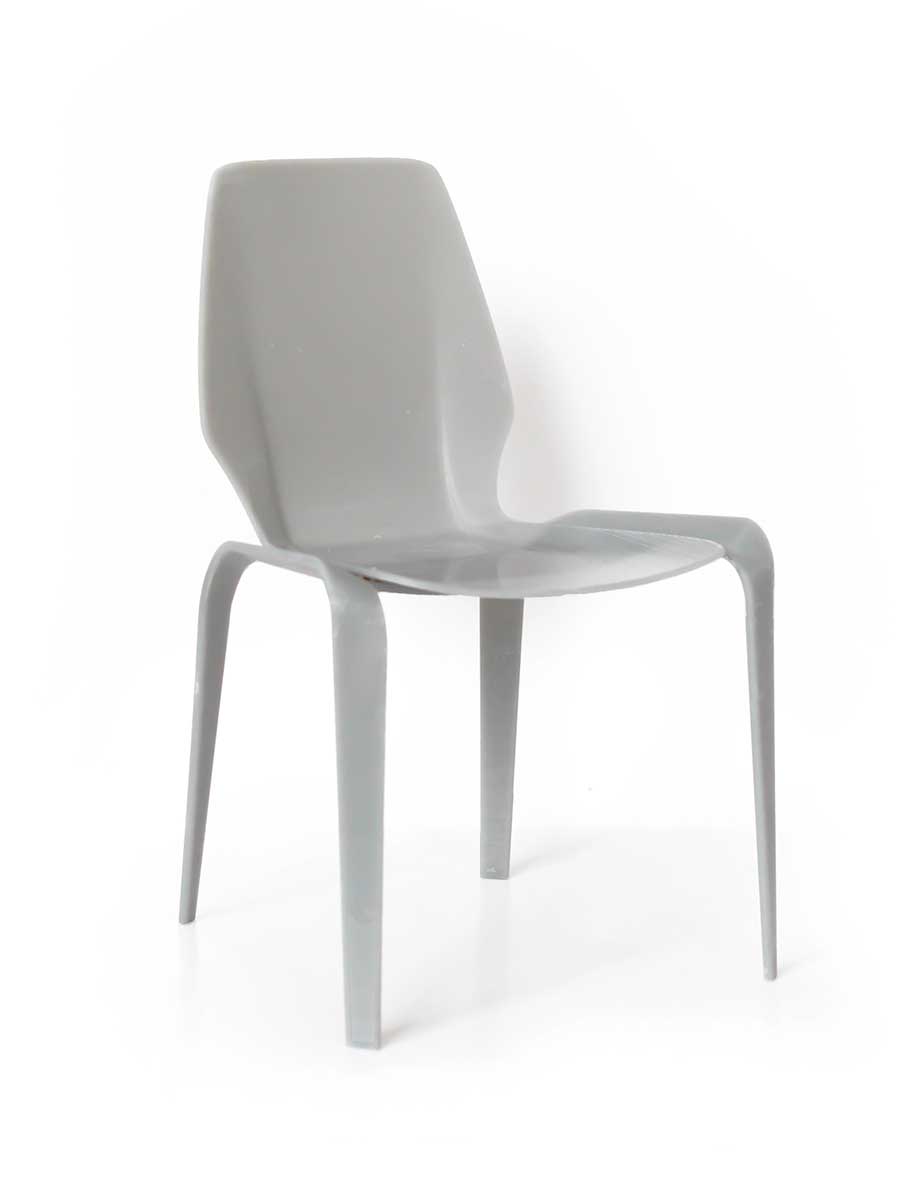

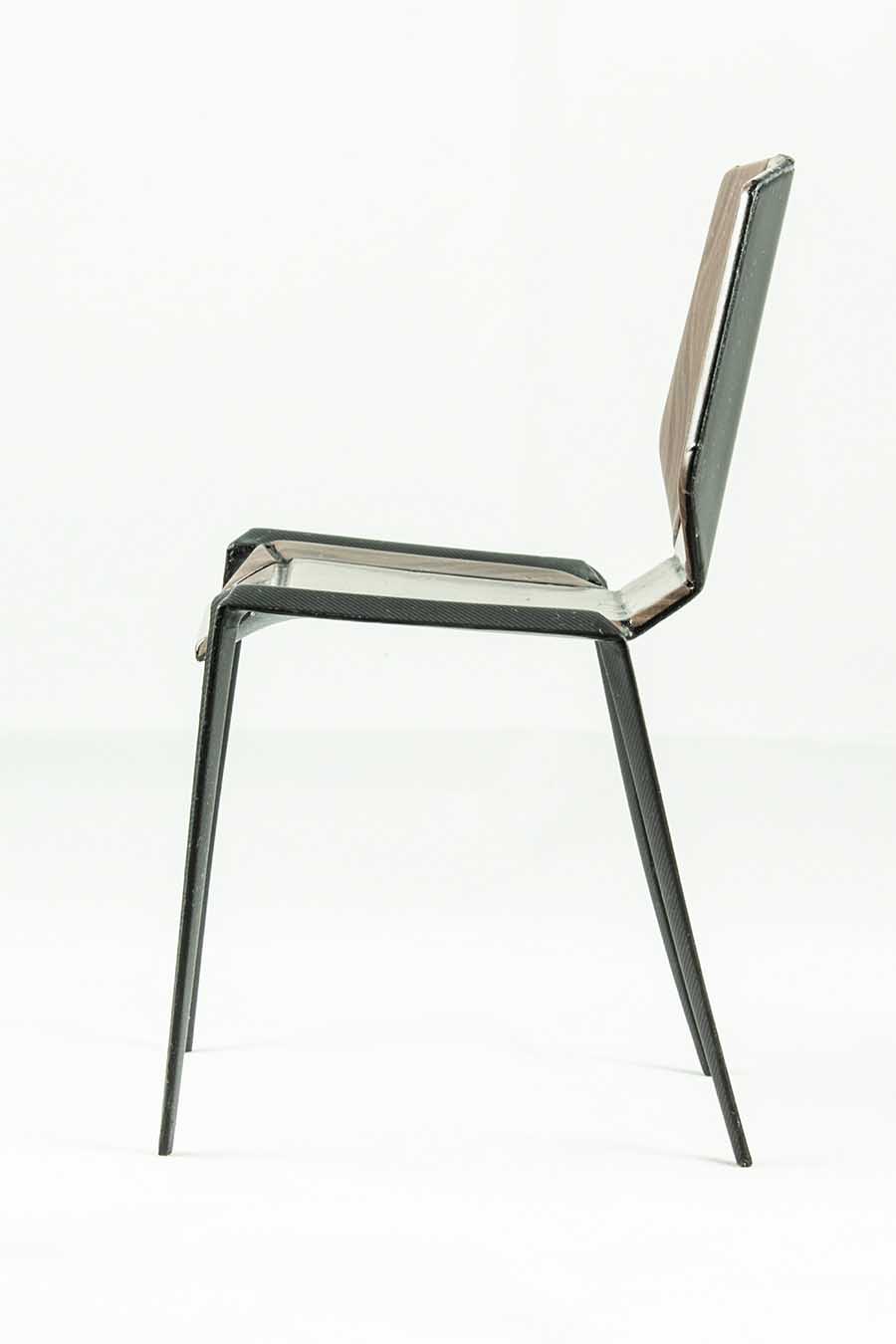

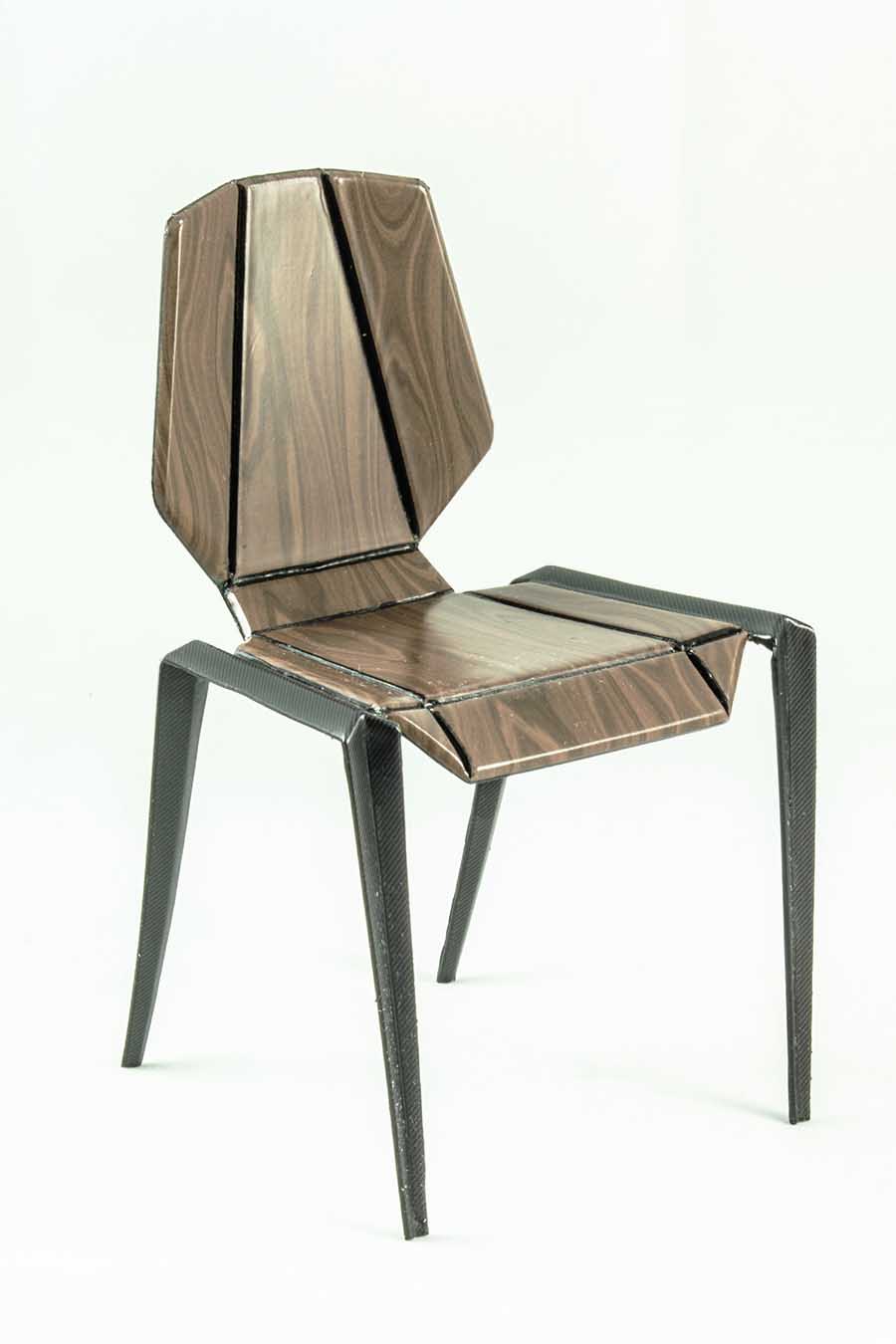

Finalized scale model photo:
-

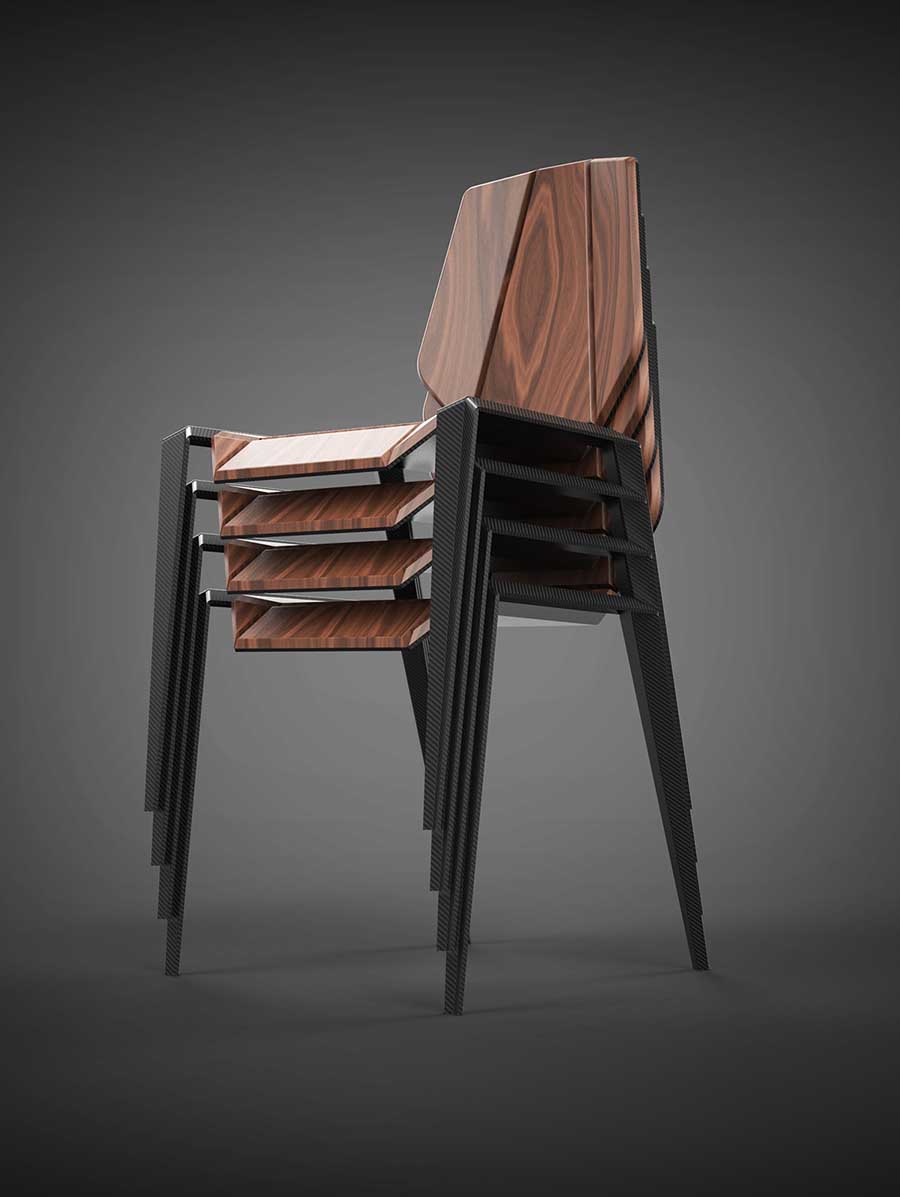

Carbon Fibre Chair Concept #2
A concept of Carbon Fibre Chair in combination with solid wood.
The 3d model was 3d printed, sanded, polished, wrapped in printed decals and laquered. See the details below.

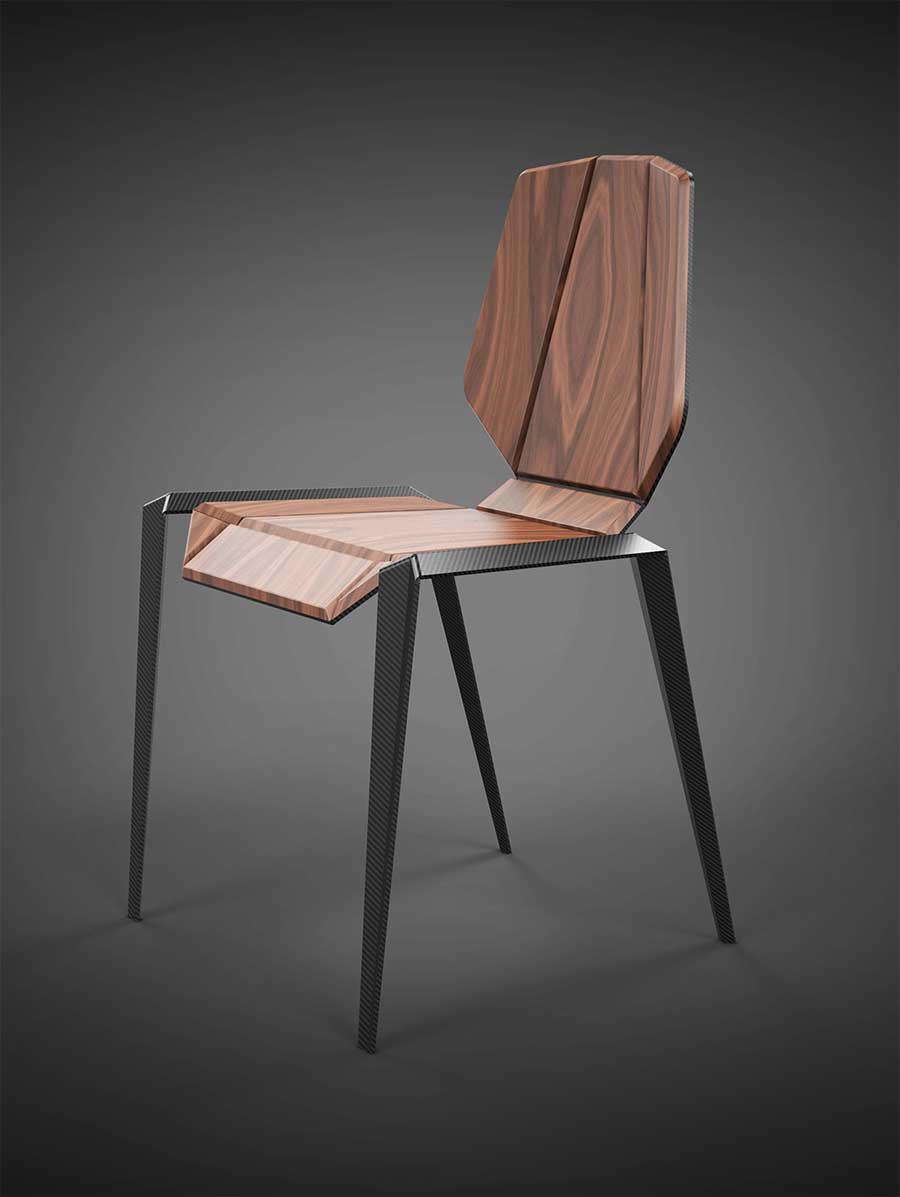

First visualizations:
Photo of raw 3d printed model in 1:5 scale:
Finalized scale model photo:
-
Carbon Bicycle frame concept
A concept of a carbon monocoque bicycle frame from year 2012 with goal to achieve modern shaped frame for road competition bicycle with simple geometric forms.
Sketch

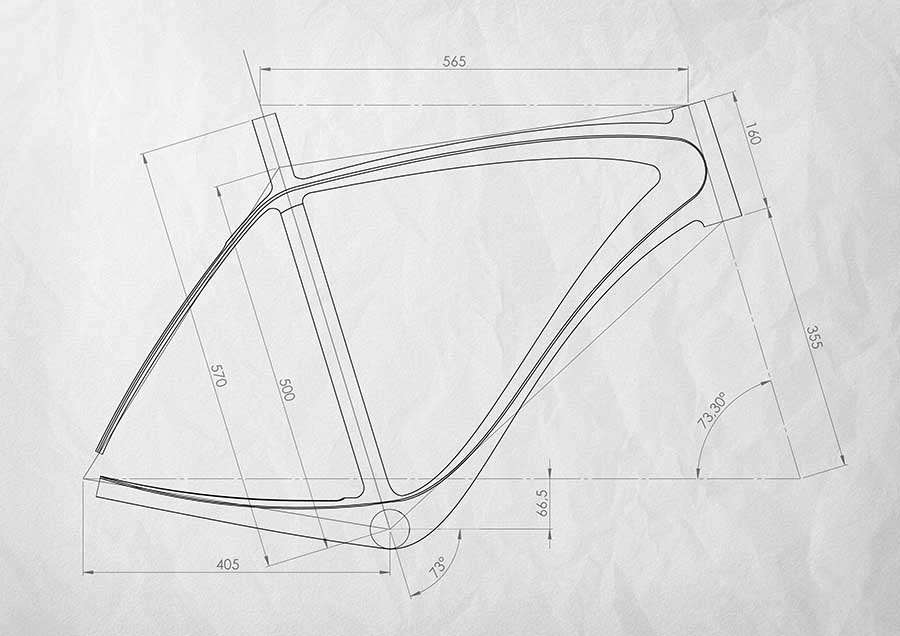

Drawing
Renderings applied on different bike photos
A professional and personal initiative rendering made by Jaume Mesalles
-
various 3d animations
GorjupDesign also worked on some 3d animations for various clients
TEM Shifter
TEM stands for Transmission electron microscopy. The Shifter is used in process of TEM researches as a vacuum switch. Developed and designed by GorjupDesign in cooperation with Gašper Ovčak
PPV Anchoring System
A project for company Franc Leskovec d.o.o., a manufacturer of anchors used to fix the insulation panels to the walls of buildings. The animation is presenting the whole principle of anchor function and the whole process of installation.
Active Chair
Active chair animation was made for Slovenian inventor, Boris Pfeiffer. The active chair is a revolutionary chair that merges all the positive aspects of an ordinary chair and therapeutic ball into one product at an affordable price. The animation shows basic principle of chair movements and options.
Promovera Package
Animation made for company Dematrade d.o.o. showing the functions and option of innovative package for pharmaceutical ointments.
KTM Duke 690
Animation of our own 3d model, KTM Duke, presenting the 3d model and considering all the detailed 3d modelling that was necessary to give the final model realistic touch.
